MPO -12 * LC 12 Cores Multimode OM1 / OM2 / OM3 / OM4 / OM5 0.9mm
Branch Patch Cord
MPO-LC multimode branch patch cords are made of multimode ribbon
add 0.9mm tube. The MPO end is typically fixed with a ribbon cable
boot (up to 12 fibers of 0.9mm) or heat shrink tube. MPO-LC 0.9
jumpers are commonly used for installation within MPO cassettes.
Therefore, all JFOPT MPO-LC fiber jumpers use bend-resistant fibers
to ensure normal loss under small radius bending. The polarity of
MPO-LC inside the MPO cassettes can be specified by the customer,
or the customer can provide channel correspondence information for
JFOPT technical personnel to confirm polarity drawings.
Additionally, the MPO adapters on the MPO cassette can be
configured with Key up or Key down to accommodate various channel
correspondence changes.
♦ Features
① Port rates upgraded from 10G/25G to 40G/100G | ②Bend-insensitive YOFC/Corning fibers ensure stable performance |
| |
③Low installation cost and simplified cable management | ④Designed specifically for high-density environments like data
centers |
| |
⑤ Customizable options include cable type, length, branch diameter,
etc | - |
| - |
♦ Applications
1.Data center cabling.

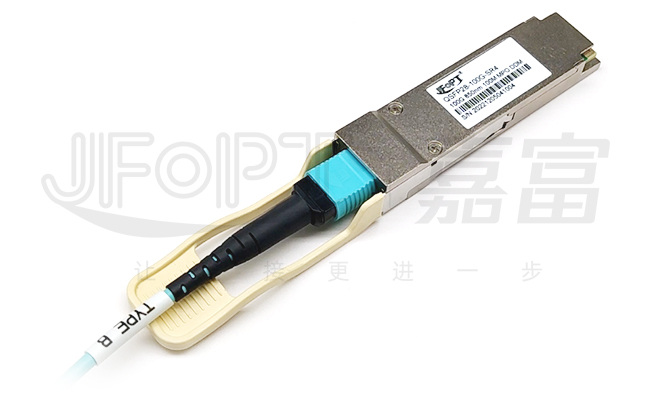

2.40G/100G optical communication systems.
3.Fiber communication systems, cable television networks, telecom
networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
Connector Type | Insertion Loss | Return Loss |
Typical | Maximum |
MPO Connector | SM Standard | 0.2dB | 0.75dB | APC≥60dB
PC≥50dB |
SM Low Loss | 0.1dB | 0.35dB |
MM Standard | 0.2dB | 0.6dB | PC≥25dB |
MM Low Loss | 0.1dB | 0.35dB |
Male/Female | Male: with Pin, Female: without Pin |
♦ LC Connector Parameters
Connector Characteristics | Connector Type | LC |
End Face Type | Single-mode: UPC/APC; Multimode: UPC |
Ferrule Type | Grade-A zirconia ceramic ferrule |
Connector Housing Color | Blue/Green/Beige/Aqua/Violet/Lime |
Insertion Loss | ≤0.3dB/≤0.2dB/≤0.15dB |
Return Loss | Single-mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
Repeatability | ≤0.2dB |
Interchangeability | ≤0.2dB |
♦ 3D Geometric Parameters
Items | Max | Min |
Radius of curvature (mm) | X | 2000 | -10000 |
Y | - | 5 |
Angle (°) | X | 0.15 | -0.15 |
Y(APC) | 8.2 | 7.8 |
Y(PC) | 0.2 | -0.2 |
Radius of curvature of optical core (mm) | - | 1 |
Fiber height (nm) | 3500 | 1000 |
Height difference of adjacent fiber (nm) | 500 | N/A |
Maximum negative coplanar (nm) | 300 | N/A |
♦ Connector Housing Color Selection
MPO connector |
SM | Green | Yellow |
Reference color number PANTONE 2270C | Reference color number PANTONE 100C |
|
|
MM | Beige | Aqua |
Reference color number PANTONE 7534C | Reference color number PANTONE 2226C |
|
|
Violet | - |
Reference color number PANTONE 7641C |
|
♦ Product Packaging
|
|
Thickened anti-static bag | Thickened carton |
♦ Factory Strength
Specialization:
With over 20 years of experience in MPO and conventional fiber
optic jumper production, JFOPT has a professional R&D team and
production equipment dedicated to meeting various installation
needs. Our products have passed multiple international
certifications and tests. |
|
|
|
|
|
Manufacturing Capability:
JFOPT has multiple production lines for MPO and conventional
connectors, supported by cable and fanout kit production equipment,
enabling fast delivery. |
|
|
|
Quality Control:
JFOPT has strict quality control measures in place, including
factory end-face inspection and 100% testing, using professional
testing equipment to ensure stable transmission performance. |
|
|
|
Standardization:
JFOPT offers various customization services, including connector
models, cable types, outer diameters, colors, polarity, and
packaging. It also supports customized production with customer
drawings and samples, ensuring product consistency and performance
stability to meet various wiring needs. |
|
|
|
Technological Innovation:
JFOPT focuses on technological innovation and has a professional
R&D team dedicated to the development and production of various
high-performance fiber optic jumpers, meeting the changing market
demands. |
|
|
|
Service and Technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendations, and
after-sales maintenance, to meet customer needs and ensure customer
satisfaction. |
|
|
|
♦ Frequent Q&A
1.What should be considered when customizing MPO branching jumpers?
It is important to consider the length, branch length, branch
diameter, cable material, fiber type and count, Male or Female
connectors, insert loss standards, color, labeling, and other
customization requirements.
2.How do we ensure the stability of our fiber jumpers?
JFOPT's fiber jumpers undergo 100% insertion loss testing and
end-face inspection, ensuring stable performance.
3.What is our delivery time?
For standard products, our delivery time is within 5 working days,
ensuring prompt shipment.
4.What other MPO-related products do we offer?
We also manufacture MPO loopbacks, MPO attenuators, MPO Male-Female
adapters, MT jumpers, and other MPO-related products.
