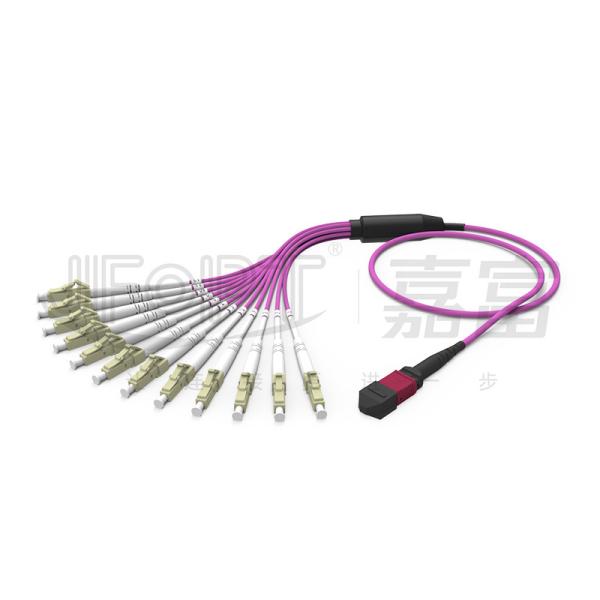

MPO-LC/SC/FC/ST Short Branch Patch Cord - 12 fibers MPO - LC Duplex
MPO Breakout Cable Multimode 50/125 3.0mm LSZH Aqua B polarity

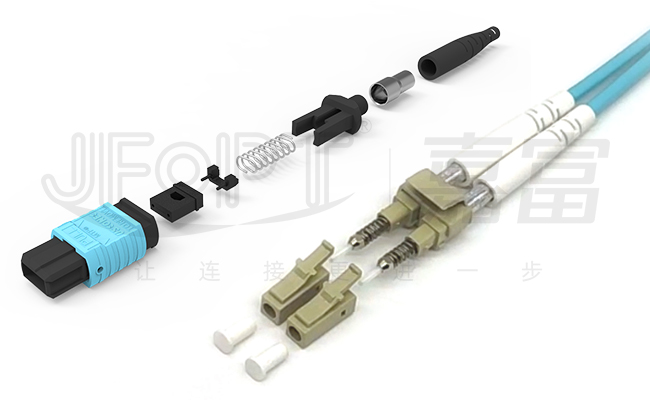

MPO/MTP branch fiber jumpers are designed to convert the
multi-fiber MPO/MTP connector into single-fiber LC/SC/FC/ST
connectors using a branching structure. It is widely used in
high-density integrated fiber optic environments such as data
center. JFOPT MPO/MTP branch fiber jumpers are made with
high-quality fiber from leading brands like Corning and Yangtze
Optical Fiber, as well as high-quality MT and ceramic ferrules.
Customized branching structures ensure long-term stable data
transmission. JFOPT can provide various customization options such
as connector types, cable lengths, branch lengths, branch materials
and diameters, branching fiber counts and polarity, and cable
colors to meet different wiring requirements.
♦ Features
① 12-fiber MPO-LC duplex connection | ②Made with bend-insensitive OM3 fiber to improve transmission
stability |
| |
③High-quality low-loss MT multifiber ferrules and low-loss ceramic
ferrules | ④Utilizes premium fiber from leading brands like Corning and
Yangtze Optical Fiber |
| |
⑤Available in various branching structures such as
0.9mm/2.0mm/3.0mm furcation tubes | ⑥ High-density cabling, saving space |
| |
⑦ Easy and time-saving installation | - |
| - |

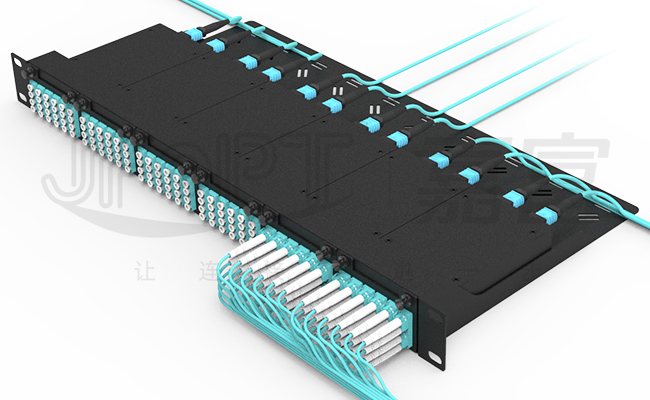

♦ Applications
1.Data center cabling
2.40G/100G optical communication systems
3.Fiber optic communication systems, cable TV networks, telecom
networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO/MTP Connector Parameters
Connector Type | Insertion Loss | Return Loss |
Typical | Maximum |
MPO Connector | SM Standard | 0.2dB | 0.75dB | APC≥60dB
PC≥50dB |
SM Low Loss | 0.1dB | 0.35dB |
MM Standard | 0.2dB | 0.6dB | PC≥25dB |
MM Low Loss | 0.1dB | 0.35dB |
MTP Connector | SM Standard | 0.25dB | 0.5dB | APC≥60dB
PC≥50dB |
SM Low Loss | 0.12dB | 0.25dB |
MM Standard | 0.2dB | 0.45dB | PC≥25dB |
MM Low Loss | 0.12dB | 0.25dB |
Male/Female | Male: with Pin, Female: without Pin |
♦ SC/LC/FC/ST Connector Parameters
Connector Type | Insertion Loss | Return Loss |
SC/LC/FC/ST
Connector | SM | ≤0.3dB | APC≥60dB
UPC≥50dB |
MM | ≤0.3dB | UPC≥25dB |
♦ MPO/MTP 3D Geometric Parameters
Items | Max | Min |
Radius of curvature (mm) | X | 2000 | -10000 |
Y | - | 5 |
Angle (°) | X | 0.15 | -0.15 |
Y(APC) | 8.2 | 7.8 |
Y(PC) | 0.2 | -0.2 |
Radius of curvature of optical core (mm) | - | 1 |
Fiber height (nm) | 3500 | 1000 |
Height difference of adjacent fiber (nm) | 500 | N/A |
Maximum negative coplanar (nm) | 300 | N/A |
♦ SC/LC/FC/ST 3D Geometric Parameters (Optional)
Items | UPC | APC |
SC/FC/ST | LC | SC/FC | LC |
SM | MM | SM | MM | SM | SM |
Radius of curvature (mm) | 10-25 | 7-25 | 5-12 |
Apex offset (μm) | ≤50 | ≤30 |
Fiber Depressed (nm) | ±100 |
Angle deviation (°) | 0 | 8±0.3 |
Bond angle deviation (°) | 0 | ±0.5 |
Fiber diameter (μm) | 123-135 |

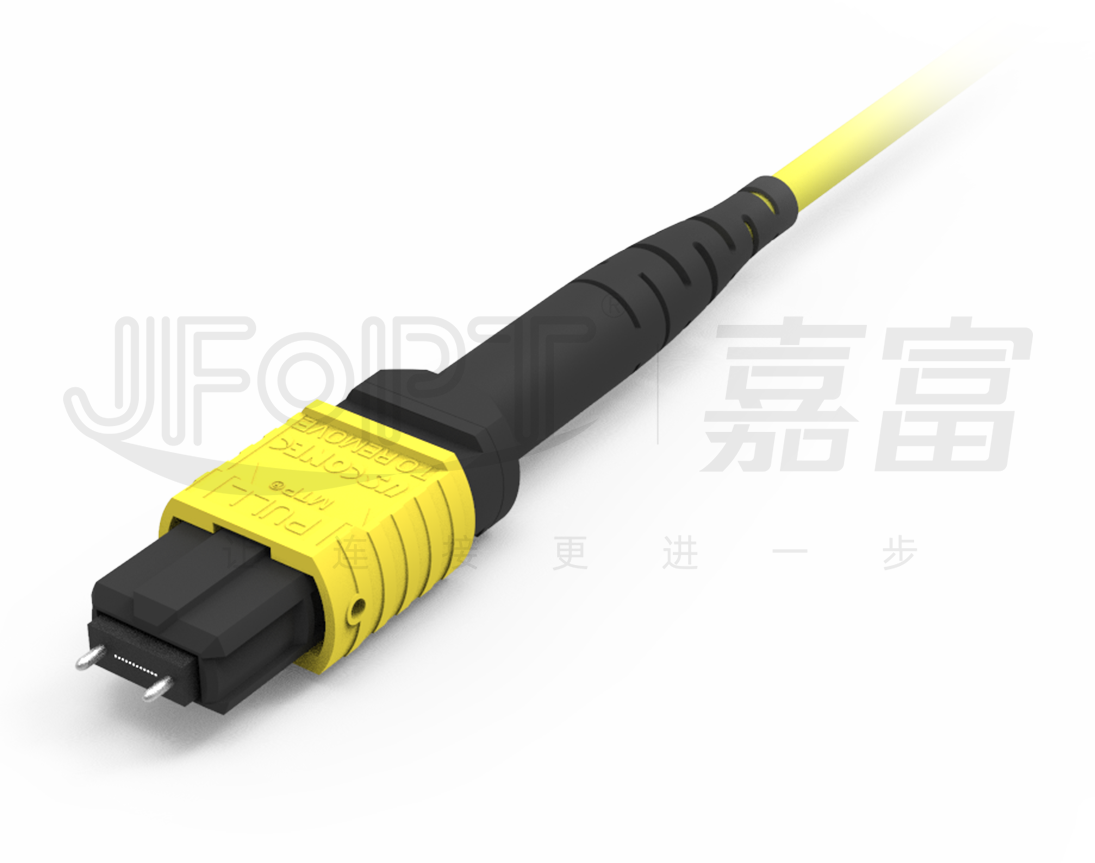

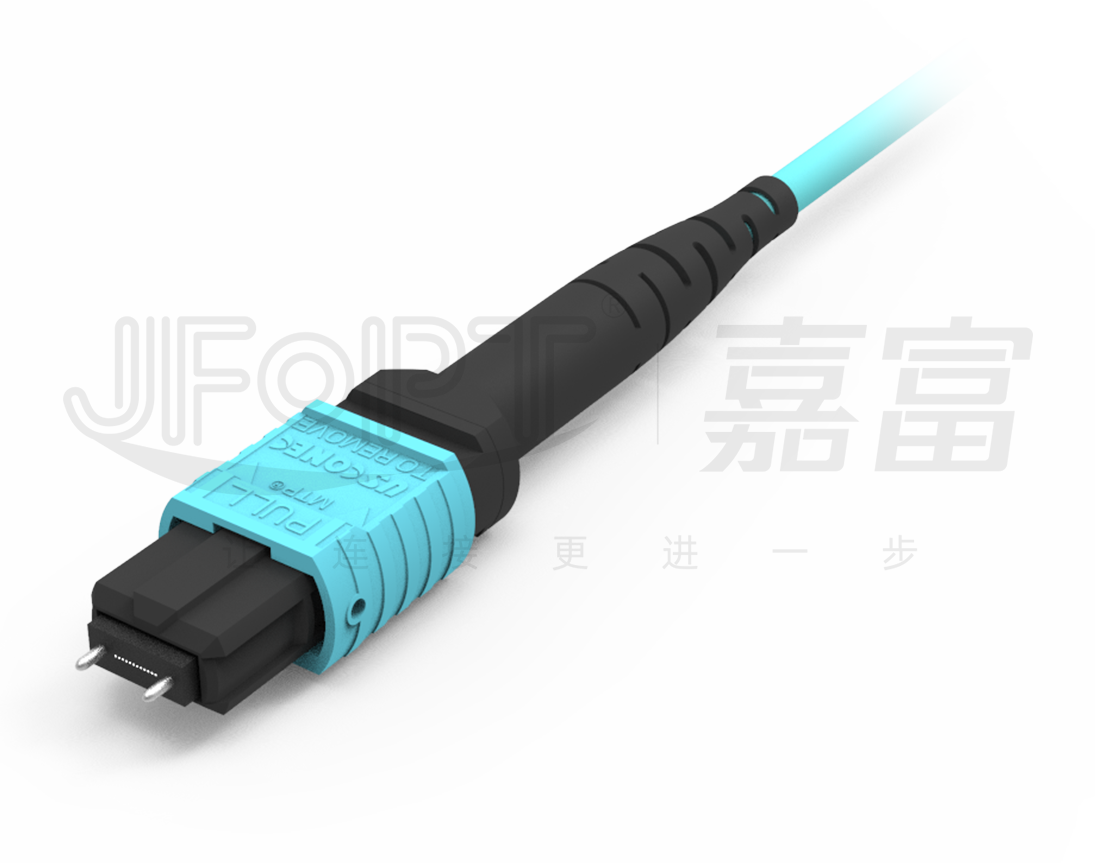

♦ Connector Color Options
MPO connector |
Single mode | Green | Yellow |
Reference color number PANTONE 2270C | Reference color number PANTONE 100C |
|
|
Multimode | Beige | Aqua |
Reference color number PANTONE 7534C | Reference color number PANTONE 2226C |
|
|
Violet | - |
Reference color number PANTONE 7641C |
|
MTP connector |
Single mode | Green | Yellow |
Reference color number PANTONE 346C | Reference color number PANTONE 106C |
|
|
Multimode | Beige | Black |
Reference color number PANTONE 7534U | Reference color number PANTONE Black 6C |
|
|
Aqua | Heather Violet |
Reference color number PANTONE 310C | Reference color number PANTONE 1905C |
|
|
Munsell Violet | Magenta |
Reference color number PANTONE 2587C | Reference color number PANTONE 208C |
|
|
Lime Green | - |
Reference color number PANTONE 375C |
|
LC connector |
Single mode | Blue | Green |
|
|
Multimode | Beige | Aqua |
|
|
Heather Violet | Lime Green |
|
|
♦ Optical Cable Parameters
Item | Parameter |
Fiber type | Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
Fiber count | Optional 8/12/16/24 |
Reinforcement element | Aramid yarn |
Outer sheath material | Optional LSZH/PVC/TPU |
Outer sheath diameter | 3.0mm |
Outer sheath color | Custom made |
Max. Tensile Strength (long term) | 80N |
Max. Tensile Strength (short term) | 150N |
Max. crush resistance (long term) | 100N/cm |
Max. crush resistance (short term) | 500N/cm |
Minimum bending radius (dynamic) | 20D |
Minimum bending radius (static) | 10D |
Operating temperature | -20~60℃ |
Storage temperature | -20~60℃ |
Flame retardance | Optional OFN/OFNR/OFNP |

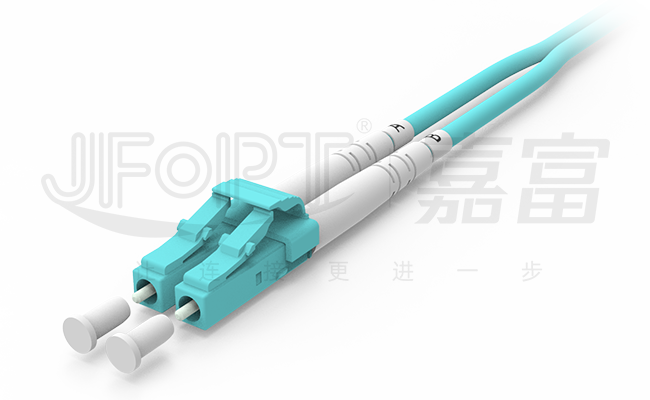

♦ LC Connector Options

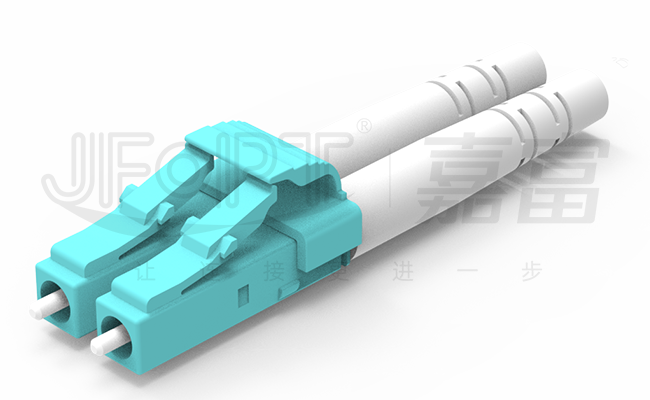

Duplex product selection |
Cable diameter | Boot type | Picture | Drawing |
2.0mm
Duplex | Standard |
|
|
3.0mm
Duplex | Standard |
|
|

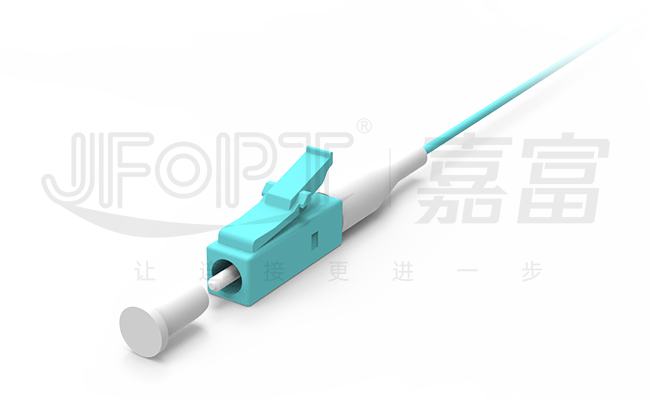

Single product selection |
Cable diameter | Boot type | Picture | Drawing |
0.9mm
Simplex | Standard |
|
|
2.0mm
Simplex | Standard |
|
|
3.0mm
Simplex | Standard |
|
|

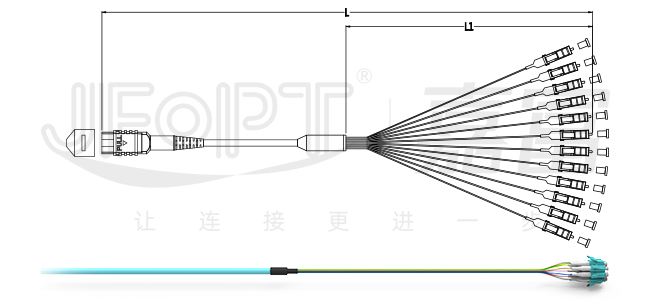

♦ Branching Options
|
Main Cable Stripping Structure |
|
|
Fanout with equal length | Fanout with unequal length |
|
Branching of direct 0.9mm subunit |
|
Branching of direct 2.0/3.0mm subunit |
♦ Polarity Selection
MPO/MTP |
|
|
LC |
|
|
♦ Product Packaging
|
|
Thickened anti-static bag | Thickened carton |
♦ Factory Strength
Specialization:
With over 20 years of experience in MPO and conventional fiber
optic jumper production, JFOPT has a professional R&D team and
production equipment dedicated to meeting various installation
needs. Our products have passed multiple international
certifications and tests. |
|
|
|
|
|
Manufacturing Capability:
JFOPT has multiple production lines for MPO and conventional
connectors, as well as cable and branching equipment, ensuring fast
delivery. |
|
|
|
Quality Control:
JFOPT has strict quality control measures in place, including
factory end-face inspection and 100% testing, using professional

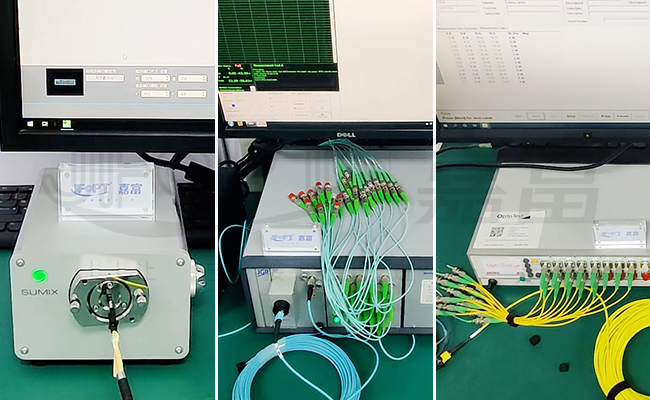

testing equipment to ensure stable transmission performance. |
|
|
|
Standardization:
JFOPT can provide various customization services for connector
types, cable types, outer diameters, color, wire sequences,
packaging, and more, and also support custom production based on
customer-provided designs or samples, ensuring consistency and
performance stability to meet different wiring requirements. |
|
|
|
Technological Innovation:
JFOPT focuses on technological innovation and has a professional
R&D team dedicated to the development and production of various
high-performance fiber optic jumpers, meeting the changing market
demands. |
|
|
|
Service and Technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendations, and
after-sales maintenance, to meet customer needs and ensure customer
satisfaction. |
|
|
|
♦ Frequent Q&A
1.What should I consider when customizing MPO branch jumpers?
When customizing MPO branch jumpers, you should consider the
following factors: length, branch length, branch wire diameter,
cable material, fiber type and count, male/female connectors,
ferrule loss standards, color, labeling, and other customization
requirements.
2.How do we ensure the stability of our fiber jumpers' parameters?
JFOPT ensures the stability of fiber jumpers' parameters through
100% insertion loss testing and end-face inspection.
3.What is our delivery lead time?
For regular products, our delivery lead time is within 5 working
days, ensuring prompt shipment.
4.What other MPO derivative products do we offer?
In addition to MPO branch jumpers, we also produce MPO loopbacks,
MPO attenuators, MPO male-to-female adapter connectors, MT jumpers,
and other related MPO products.
