288 Cores 12 Sub-Unit Multimode OM3 -300 OFNR OFNP MPO / PC Trunk
Patch Cord
The MPO multimode OM3 288 cores backbone jumper is suitable for
high-density wiring centers. It is typically divided into 24 units
of 12 cores mini cables or 12 units of 24 cores mini cables. Each
subunit mini cable is equipped with an MPO connector, and the
entire jumper has no branches, providing a more stable structure.
Our company's MPO connectors are produced using a complete set of
imported equipment, and all connectors undergo 100% testing in a
dust-free workshop.
♦ Features

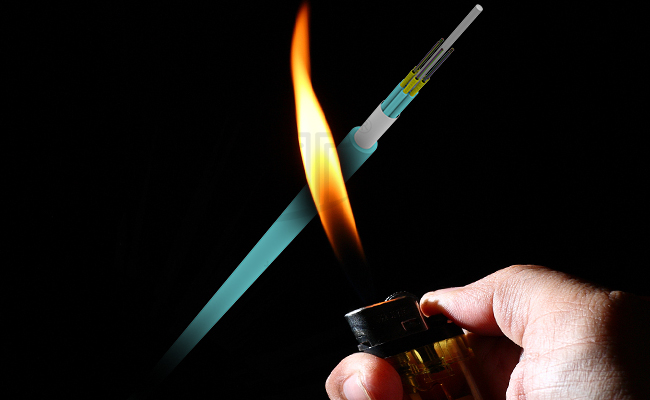

① OFNP/OFNR flame retardant rating | ② Provides higher density and larger space |
|
|
|
|
|
|
③ High-quality fibers and connectors ensure stable signal
transmission | ④ 100% 3D instrument testing to guarantee high quality |
|
|
|
|
|
|
⑤ Easy installation and convenient connection | - |
| - |
|
|
|
|
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom
networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
Connector Type | Insertion Loss | Return Loss |
Typical | Maximum |
MPO Connector | SM Standard | 0.2dB | 0.75dB | APC≥60dB
PC≥50dB |
SM Low Loss | 0.1dB | 0.35dB |
MM Standard | 0.2dB | 0.6dB | PC≥25dB |
MM Low Loss | 0.1dB | 0.35dB |
Male / Female | Male : with Pin Female : without Pin |
♦ 3D Geometric Parameters
Items | Max | Min |
Radius of curvature (mm) | X | 2000 | -10000 |
Y | - | 5 |
Angle (°) | X | 0.15 | -0.15 |
Y(APC) | 8.2 | 7.8 |
Y(PC) | 0.2 | -0.2 |
Radius of curvature of optical core (mm) | - | 1 |
Fiber height (nm) | 3500 | 1000 |
Height difference of adjacent fiber (nm) | 500 | N/A |
Maximum negative coplanar (nm) | 300 | N/A |
♦ Cable Parameters
Item | Parameter |
Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
Fiber Count | 24 | 48 | 72 | 96 | 144 | 288 |
Sub-cable | 12 cores / unit | 12 cores / unit | 12 cores / unit | 12 cores / unit | 12 cores / unit | 12 cores / unit | 24 cores / unit |
Central Strength Member | / | / | FRP |
Sub- cable Outer Diameter | 3.0mm |
Sub-cable Jacket Material | PVC/LSZH |
Sub-cable Jacket Color | Yellow / Orange / Green / Heather Violet / Customization |
Sub-cable Strength Member | Aramid yarn |
Outer Jacket Diameter | 9.5mm | 9.5mm | 11.5mm | 13.5mm | 17.0mm |
Outer Jacket Material | PVC/LSZH |
Outer Jacket Color | Yellow / Orange / Green / Heather Violet / Customization |
Tensile Strength (Long-Term) | 300N | 200N | 400N | 800N | 1600N |
Tensile Strength (Short-Term) | 600N | 400N | 1000N | 1500N | 3000N |
Crush Resistance (Long-Term) | 300N/10cm |
Crush Resistance (Short-Term) | 1000N/10cm |
Minimum Bending Radius (Dynamic) | 20D |
Minimum Bending Radius (Static) | 10D |
Operating Temperature | -20~60℃ |
Storage Temperature | -20~60℃ |
Fire Rating | OFN / OFNR / OFNP |
♦ Connector Boot Selection
MPO Boot Type |
Type | Specification | Applicable cable OD | Picture | Drawings |
Round boot | 3.0 boot L=33mm | 3.0/3.2 |
|
|
3.0 boot L=17mm | 3.0/3.2 |
|
|
Square boot | 3.0 boot L=25mm | 3.0/3.2 |
|
|
Push-pull tab | Universal for all boots | Universal |
|
|
♦ Connector Housing Color Options
MPO Connector |
Single mode | Green | Yellow |
Reference color number PANTONE 2270C | Reference color number PANTONE 100C |
|
|
Multimode | Beige | Aqua |
Reference color number PANTONE 7534C | Reference color number PANTONE 2226C |
|
|
Violet | - |
Reference color number PANTONE 7641C |
|
♦ Polarity Selection
12F Patch Cord |
|
24F Patch Cord |
|
♦ Product Packaging
|
|
Thickened anti-static bag | Thickened carton |
♦ Factory Strength
Professionalism:
JFOPT has been focusing on the production of MPO jumpers for over
10 years, with professional expertise and a complete set of
top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality
and high-performance MPO jumpers. |
|
|
|
|
|
Manufacturing capacity:
JFOPT has 5 MPO production lines and equipment to produce a large
quantity of MPO jumpers quickly and efficiently to meet customer
demands. |
|
|
|
Quality Control:
JFOPT implements strict quality control measures at every stage,
from raw material procurement to production processes, with
professional quality inspection and monitoring. We conduct 100% 3D
interferometer testing/return loss testing/end-face inspection to
ensure product quality. |
|
|
|
Standard Development:
JFOPT can develop and strictly adhere to MPO jumper production
standards based on customer requirements to ensure product
consistency and performance stability. |
|
|
|
Technological Innovation:
JFOPT emphasizes technological innovation and has a professional
R&D team dedicated to developing more advanced and
higher-performing MPO jumpers. |
|
|
|
Service and Technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendations, and
post-sales maintenance, to meet customer needs and ensure customer
satisfaction. |
|
|
|
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO
Male or female/ Insertion loss standards / Color requirements /
Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100%
IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors,
ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO
attenuators, MPO male to female adapters, MT jumpers, and other MPO
related products.
