    12 Core MPO Trunk Cable Multimode 50/125 3.0mm LSZH Aqua B Polarity Patch Cord

    Ask Lasest Price
    Brand Name : JFOPT
    Model Number : MPO/P(F)-MPO/P(F)-12F-OM3-3.0-LSZH-SL-B-1M
    • Product Details
    • Company Profile

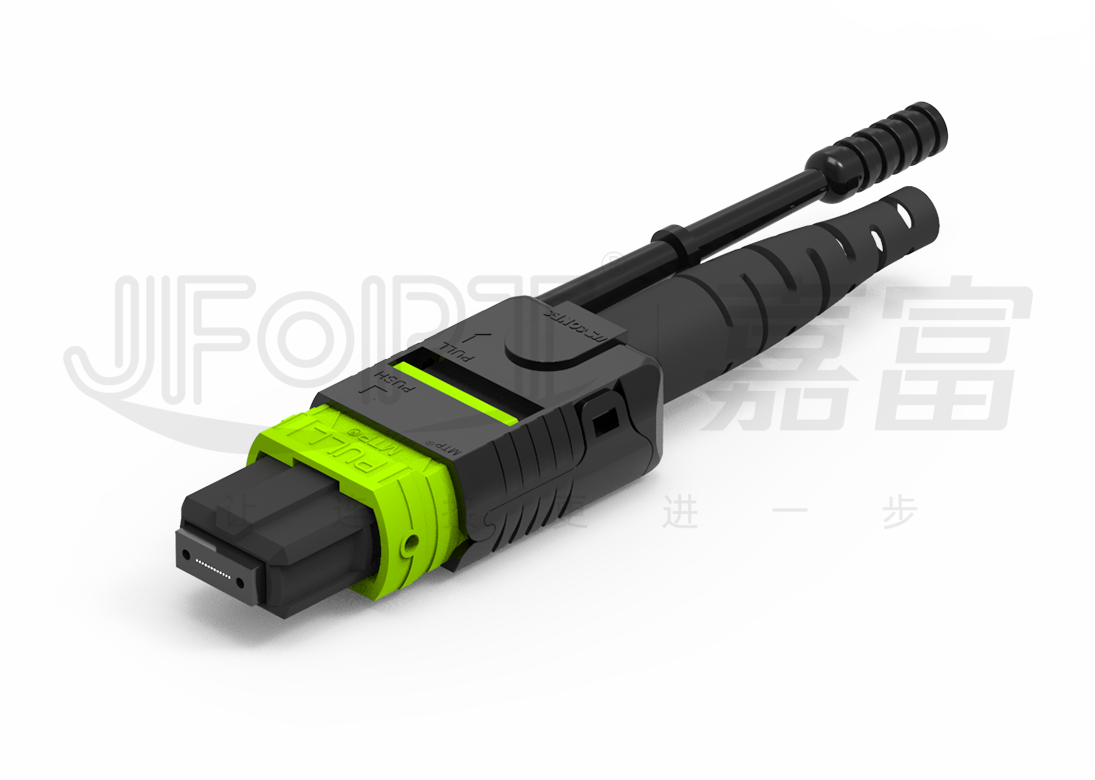

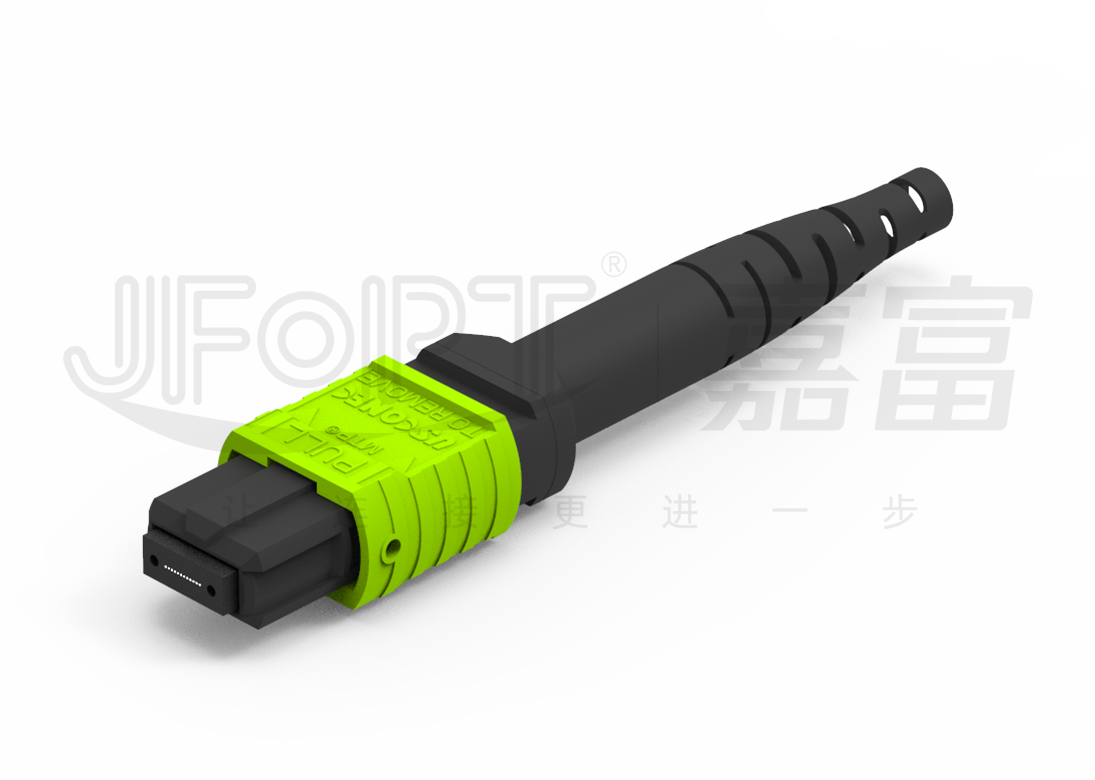

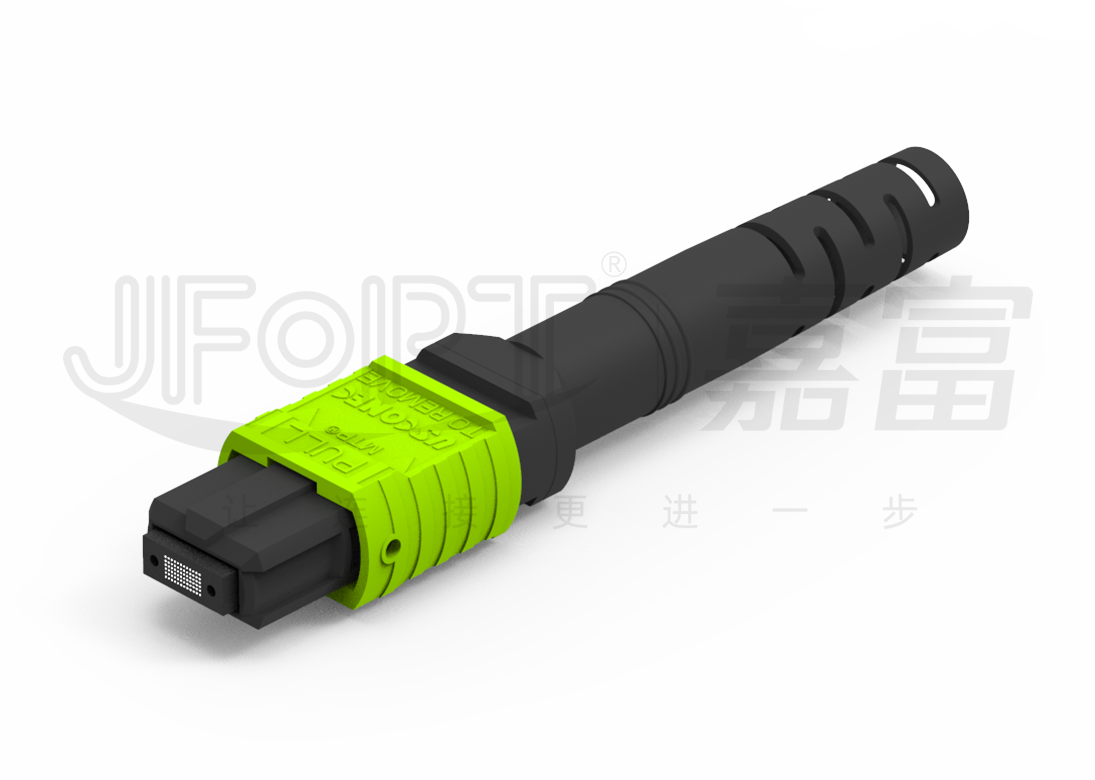

    12 Core MPO Trunk Cable Multimode 50/125 3.0mm LSZH Aqua B Polarity Patch Cord

    12 - core MPO trunk cable multimode 50/125 3.0mm LSZH aqua B polarity


    MPO-MPO trunk cable is a high-density fiber optic jumper cable. Its MT ferrule is made of resin, with excellent stability and reliability, ensuring over 500 matings. JFOPT MPO trunk cables are made with high-quality optical cables, offering low insertion loss transmission performance. Thanks to their superior aramid and cable jacket materials, they also have better tensile strength and temperature stability. The trunk cables undergo multiple rigorous quality testing processes to ensure they meet the highest quality standards. We provide customized services with various lengths and cable types to meet your specific needs. Additionally, we offer comprehensive pre-sales and after-sales services and technical support to ensure your satisfaction.


    ♦ Features

    ① 12-fiber connection

    ② Made with bend-insensitive OM3 fiber to improve transmission stability

    ③ High-quality and low-loss MT multi-core ferrule

    ④100% terminated and tested to ensure transmission performance

    ⑤ Suitable for high-density wiring

    ⑥ Faster installation, reducing operational time


    ♦ Applications

    1.Data center cabling
    2.40G/100G optical communication systems, QSFP optical modules
    3.Fiber optic communication systems, cable TV networks, telecommunications networks
    4.Local area networks (LANs), wide area networks (WANs), FTTx


    ♦ MPO/MTP Connector Parameters

    Connector Type

    Insertion Loss

    Return Loss

    Typical

    Maximum

    MPO Connector

    SM Standard

    0.2dB

    0.75dB

    APC≥60dB
    PC≥50dB

    SM Low Loss

    0.1dB

    0.35dB

    MM Standard

    0.2dB

    0.6dB

    PC≥25dB

    MM Low Loss

    0.1dB

    0.35dB

    MTP Connector

    SM Standard

    0.25dB

    0.5dB

    APC≥60dB
    PC≥50dB

    SM Low Loss

    0.12dB

    0.25dB

    MM Standard

    0.2dB

    0.45dB

    PC≥25dB

    MM Low Loss

    0.12dB

    0.25dB

    Male/Female

    Male: with Pin, Female: without Pin


    ♦ 3D Geometric Parameters (Optional)

    Items

    Max

    Min

    Radius of curvature (mm)

    X

    2000

    -10000

    Y

    -

    5

    Angle (°)

    X

    0.15

    -0.15

    Y(APC)

    8.2

    7.8

    Y(PC)

    0.2

    -0.2

    Radius of curvature of optical core (mm)

    -

    1

    Fiber height (nm)

    3500

    1000

    Height difference of adjacent fiber (nm)

    500

    N/A

    Maximum negative coplanar (nm)

    300

    N/A


    Connector Color Options

    MPO connector

    Single mode

    Green

    Yellow

    Reference color number PANTONE 2270C

    Reference color number PANTONE 100C

    Multimode

    Beige

    Aqua

    Reference color number PANTONE 7534C

    Reference color number PANTONE 2226C

    Violet

    -

    Reference color number PANTONE 7641C


    MTP connector

    Single mode

    Green

    Yellow

    Reference color number PANTONE 346C

    Reference color number PANTONE 106C

    Multimode

    Beige

    Black

    Reference color number PANTONE 7534U

    Reference color number PANTONE Black 6C

    Aqua

    Heather Violet

    Reference color number PANTONE 310C

    Reference color number PANTONE 1905C

    Munsell Violet

    Magenta

    Reference color number PANTONE 2587C

    Reference color number PANTONE 208C

    Lime Green


    Reference color number PANTONE 375C


    ♦ Optical Cable Parameters

    Item

    Parameter

    Fiber type

    Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

    Fiber count

    Optional 8/12/16/24

    Reinforcement element

    Aramid yarn

    Outer sheath material

    Optional LSZH/PVC/TPU

    Outer sheath diameter

    3.0mm

    Outer sheath color

    Custom made

    Max. Tensile Strength (long term)

    80N

    Max. Tensile Strength (short term)

    150N

    Max. crush resistance (long term)

    100N/cm

    Max. crush resistance (short term)

    500N/cm

    Minimum bending radius (dynamic)

    20D

    Minimum bending radius (static)

    10D

    Operating temperature

    -20~60℃

    Storage temperature

    -20~60℃

    Flame retardance

    Optional OFN/OFNR/OFNP


    ♦ Boot Options

    MPO boot

    Type

    Specification

    Applicable cable


    Drawings

    Round boot

    3.0 boot length 33mm

    3.0/3.2

    3.0 boot length 17mm

    3.0/3.2

    4.0 boot length 33mm

    3.8/4.0

    Square boot

    3.0 boot length 25mm

    3.0/3.2

    4.0 boot length 17mm

    3.8/4.0

    Ribbon Cable boot

    2.5*5.0 boot length 22mm

    2.5*5.0

    Bare Ribbon fiber boot

    Bare Ribbon fiber boot length 19mm

    Bare Ribbon Fiber

    Pull tab

    Universal for all boots

    Universal


    MTP boot type

    Type

    Specification

    Applicable cable


    Drawings

    Round boot

    2.0 boot length 33.2mm

    2.0

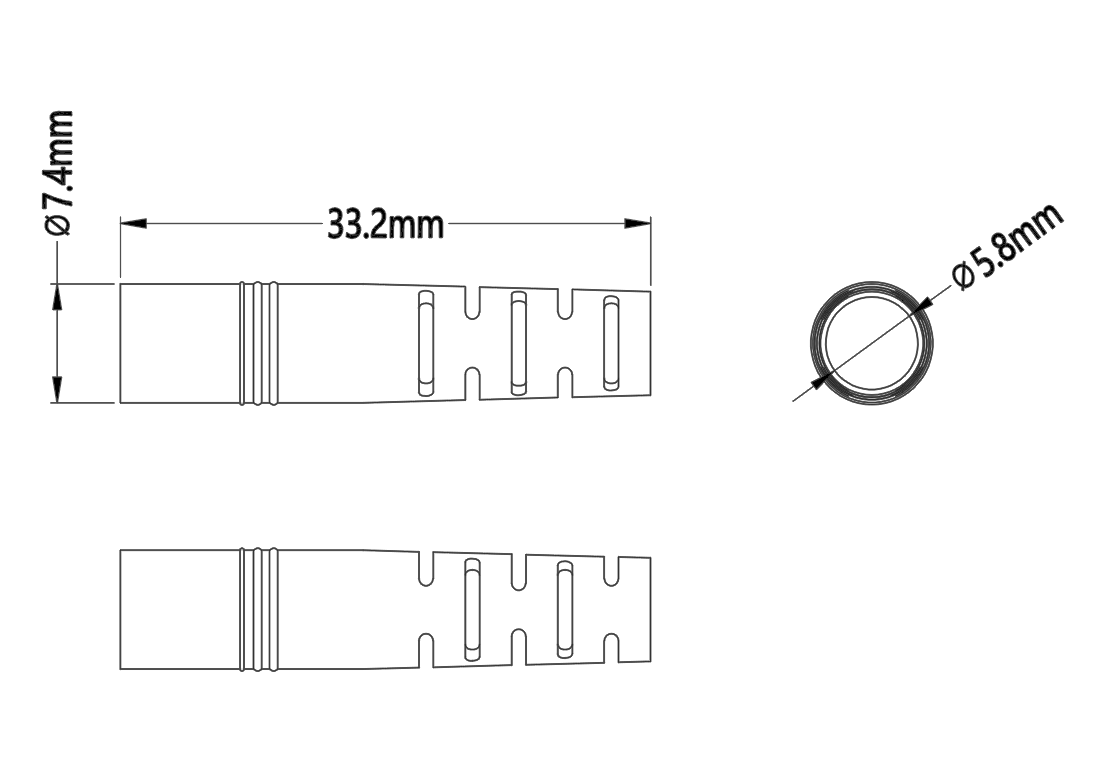

    3.0 boot length 33.2mm

    2.5/3.0

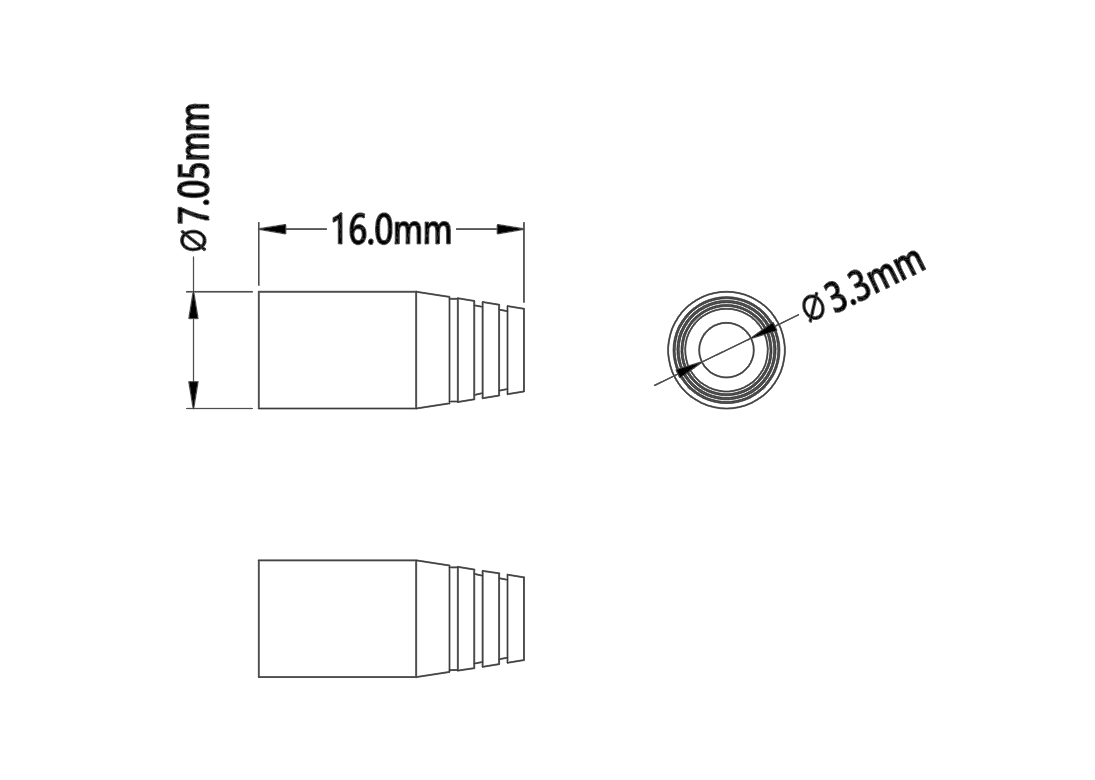

    3.0 boot length 16mm

    3.0

    3.0 bendable boot length 33.6mm

    3.0

    3.6 boot length 33.2mm

    3.6

    3.6 boot length 16mm

    3.6

    3.6 bendable boot length 33.6mm

    3.6

    4.5 boot length 33.2mm

    4.0/4.5

    5.5 boot length 33.2mm

    5.0/5.5

    Cable boot

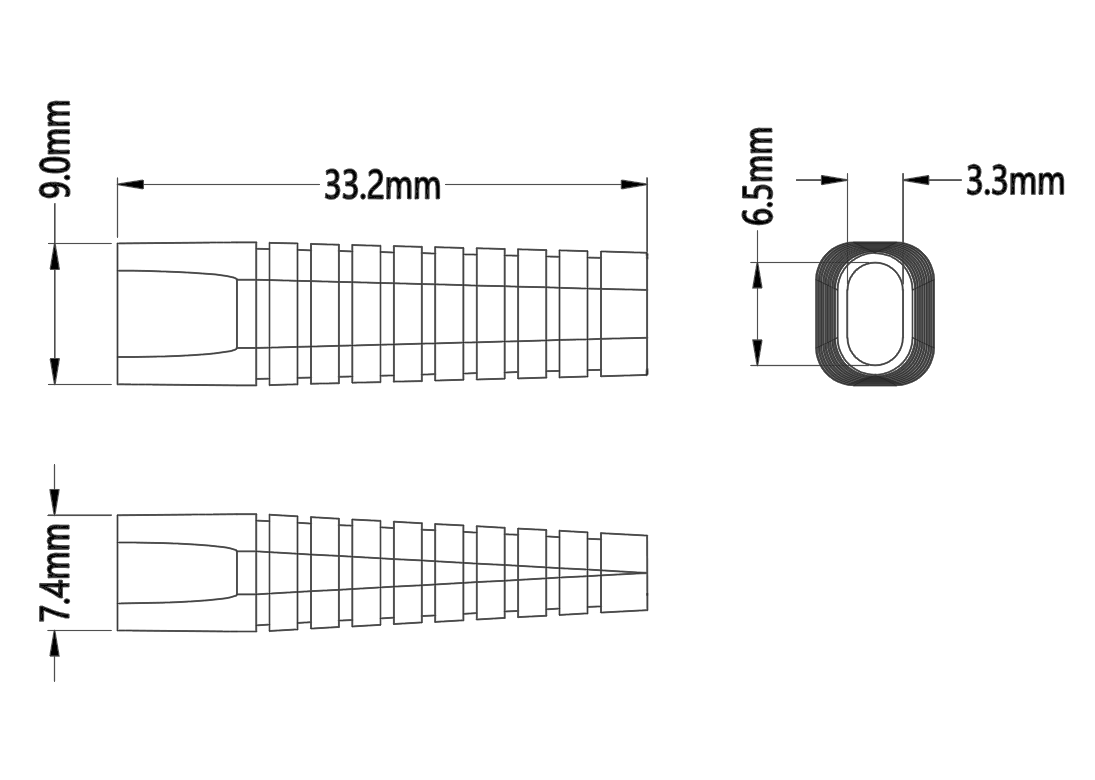

    3.0*6.0 boot length 33.2mm

    3.0*6.0

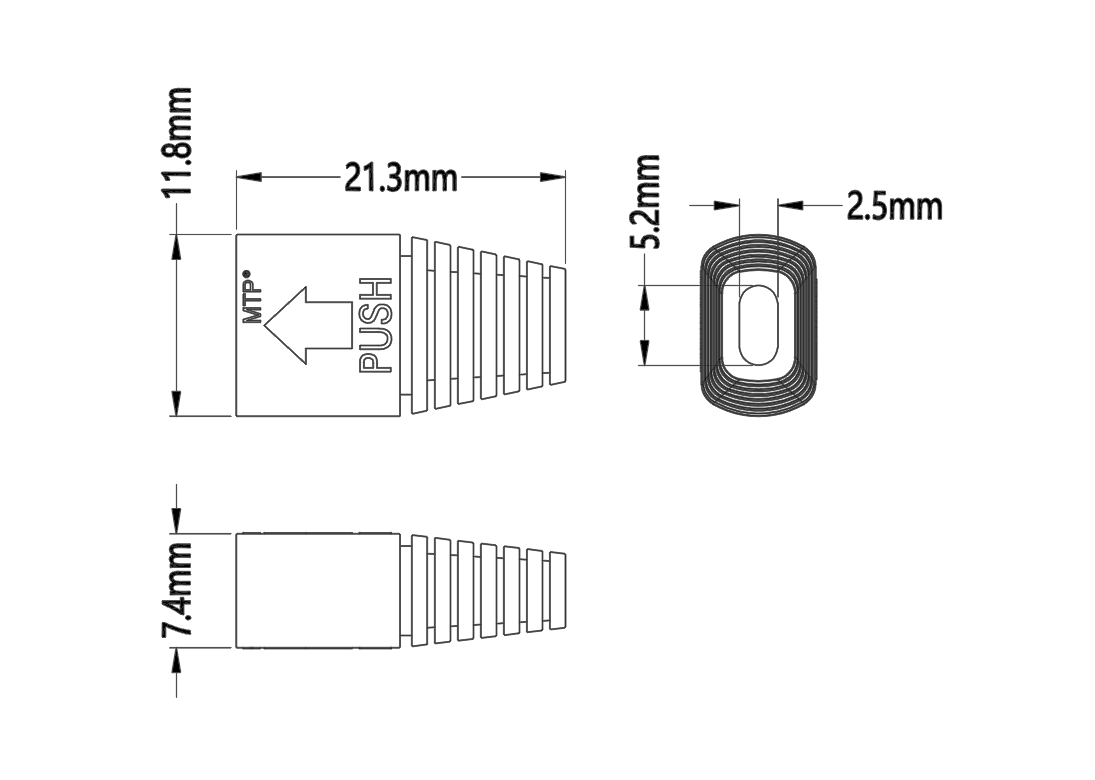

    2.5*5.0 boot length 21.3mm

    2.5*5.0

    Bare ribbon fiber boot

    Bare ribbon fiber boot length 19mm

    Bare Ribbon Fiber

    Push tab

    Universal for all boots

    Universal


    ♦ Polarity Selection

    12F Patch Cord

    24F Patch Cord


    ♦ Product Packaging

    Thickened anti-static bag

    Thickened carton


    Factory Strength

    Professional:


    JFOPT has focused on the production of MPO jumpers for more than 10 years. With professional technology and a full set of first-class brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality, high-performance MPO jumpers.

    Manufacturing capacity:


    JFOPT has 5 MPO production lines, allowing the rapid and efficient production of a large quantity of MPO trunk cables to meet customer demands.

    QC:


    JFOPT implements strict quality control at every step, from raw material to the production. We conduct professional quality inspections and monitoring, including 100% 3D interferometer testing, insertion loss testing, and end-face inspection, to ensure product quality.

    Setting standards:


    JFOPT can formulate and strictly implement MPO jumper production standards according to user needs to ensure product consistency and performance stability.

    Technological innovation:


    JFOPT focuses on technological innovation and has a professional R&D team to continuously develop MPO jumpers with more advanced functions and higher performance.

    Service and Technical Support:


    JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction.


    ♦ Frequent Q&A

    1.What issues should be paid attention to when customizing MPO jumpers?
    MPO jumper length/cable material/fiber type and number of cores/connector male/female/insert loss standard/color/label and other customized requirements.


    2.How does our MPO jumper ensure stable parameters?
    JFOPT's MPO jumper 100% passed the 3D interference test and 100% passed the insertion return loss test to ensure stable parameters.


    3.Our lead time?
    We can produce 30000+ MPO connectors per month, which can fully guarantee your fast shipment.


    4.What other MPO derivative products do we do?
    We can also produce MPO related products such as MPO circuit breaker/MPO attenuator/MPO male-to-female transition connector/MT jumper wire.
