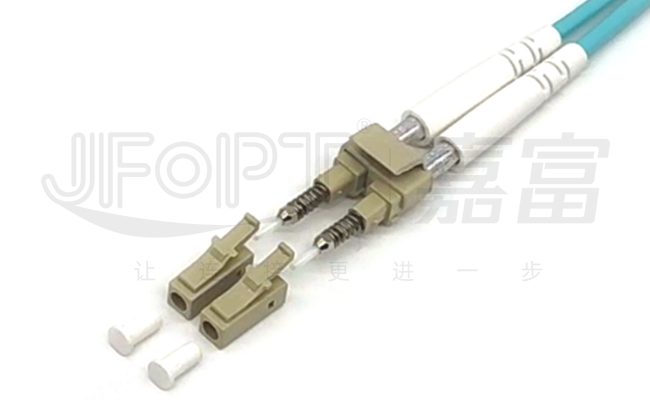

LC - LC Duplex Fiber Optic Patch Cord Multimode 50/125 3.0mm LSZH
Aqua
Our LC fiber patch cords are manufactured with high-quality
materials by advanced technology. They feature high performance
(low insertion loss, high return loss), high interchangeability
(compatible with almost all LC interfaces in the market, ensuring
high consistency even with different adapters), and compact design
(for high-density spaces). JFOPT offers various options such as
uniboot, polarity changeable, push-pull type LC connectors,
suitable for high density rack-mounted racks, reducing space
occupation and improving reliability and usability. JFOPT can also
provide the LC patch cord with higher return loss, or 3D test.
JFOPT insists on the PEI materials with high rebound resilience and
anti-aging properties. The patch cords have passed multiple
international certifications.
♦ Features
① Duplex | ②Made with bend-insensitive OM3 fiber to improve transmission
stability |
|
|
|
|
|
|
③ Equipped with CCTC high-quality,low-loss ceramic ferrules and
YOFC/Corning fiber | ④100% terminated and tested in factory to ensure transmission
performance |
|
|
|
|
|
|
⑤Special requirements such as optical cable and connector color,
marking ring/heat shrinkable tube can be customized | - |
| - |
|
|
|
|
♦ Applications
1.Fiber access network
2.Fiber optic data transmission
3.Optical fiber communication system, cable television network,
telecommunication network
4.Local area networks (lans), wide area networks (wans), fttx
5.Test equipment, fiber optic sensors
♦ SC/LC/FC/ST Connector Parameters
Connector Type | Insertion Loss | Return Loss |
SC/LC/FC/ST
Connector | SM | ≤0.3dB | APC≥60dB
UPC≥50dB |
MM | ≤0.3dB | UPC≥25dB |
♦ 3D Geometric Parameters (Optional)
Items | UPC | APC |
SC/FC/ST | LC | SC/FC | LC |
SM | MM | SM | MM | SM | SM |
Radius of curvature (mm) | 10-25 | 7-25 | 5-12 |
Apex offset (μm) | ≤50 | ≤30 |
Fiber Depressed (nm) | ±100 |
Angle deviation (°) | 0 | 8±0.3 |
Bond angle deviation (°) | 0 | ±0.5 |
Fiber diameter (μm) | 123-135 |
♦ Connector Color Options
LC connector |
Single mode | Blue | Green |
|
|
|
Multimode | Beige | Aqua |
|
|
|
Heather Violet | Lime Green |
|
|
|
♦ Optical Cable Parameters
Item | Parameter |
Fiber type | Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
Fiber count | 2 |
Reinforcement element | Aramid yarn |
Outer sheath material | Optional LSZH/PVC/TPU |
Outer sheath diameter | 3.0mm |
Outer sheath color | Customizable |
Max. Tensile Strength (long term) | 160N |
Max. Tensile Strength (short term) | 300N |
Max. crush resistance (long term) | 200N/cm |
Max. crush resistance (short term) | 1000N/cm |
Minimum bending radius (dynamic) | 50mm |
Minimum bending radius (static) | 30mm |
Operating temperature | -20~60℃ |
Storage temperature | -20~60℃ |
flame retardance | Optional OFN/OFNR/OFNP |
♦ Connector Options
Duplex |

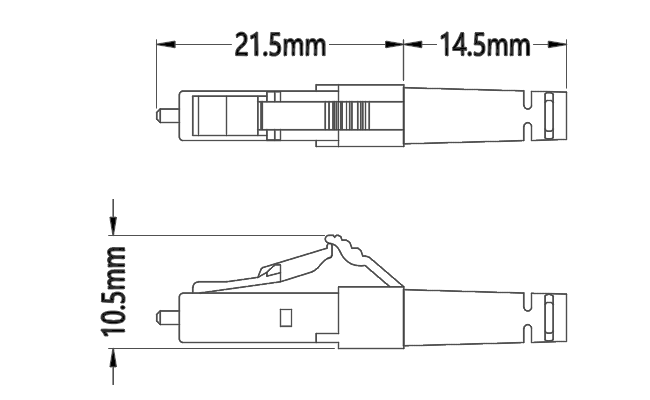

Cable diameter | Boot type | Picture | Drawings |
2.0mm
Duplex | Standard boot |
|
|
|
|
|
|
|
|
|
2.0mm
Duplex | Short boot 1 |
|
|
|
|
|
|
|
|
|
2.0mm
Duplex | Short boot 2 |
|
|
|
|
|
|
|
|
|
3.0mm
Duplex | Standard boot |
|
|
|
|
|
|
|
|
|
3.0mm
Duplex | Short boot 1 |
|
|
|
|
|
|
|
|
|
3.0mm
Duplex | Standard UNIBOOT |
|
|
|
|
|
|
|
|
|
2.0/3.0mm

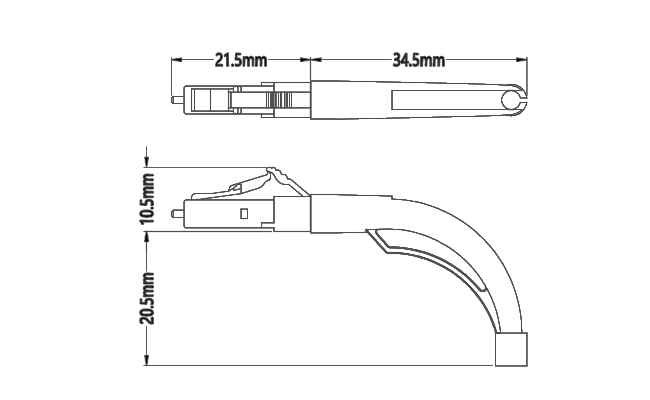

Duplex | 45° boot |
|
|
|
|
|
|
|
|
|
2.0/3.0mm
Duplex | 90° boot |
|
|
|
|
|
|
|
|
|
Duplex
Narrow pitch buckle | With any boot
(except UNIBOOT) |
|
|
|
|
|
|
|
|
|
Simplex |
Cable diameter | Boot type | Picture | Drawings |
0.9mm
Simplex | Standard boot |
|
|
|
|
|
|
|
|
|
2.0mm
Simplex | Standard boot |
|
|
|
|
|
|
|
|
|
2.0mm
Simplex | Short boot 1 |
|
|
|
|
|
|
|
|
|
2.0mm
Simplex | Short boot 2 |
|
|
|
|
|
|
|
|
|
3.0mm
Simplex | Standard boot |
|
|
|
|
|
|
|
|
|
3.0mm
Simplex | Short boot 1 |
|
|
|
|
|
|
|
|
|
2.0/3.0mm
Simplex | 45° boot |
|
|
|
|
|
|
|
|
|
2.0/3.0mm
Simplex | 90° boot |
|
|
|
|
|
|
|
|
|
♦ Duplex Polarity Selection
TYPE A-B(Straight) |
|
TYPE A-A(Crossing) |
|
♦ Product Packaging
|
|
Thickened ziplock bag | Thickened carton |
♦ Factory Strength
Professional:
JFOPT has been focusing on the production of optical fiber jumpers
for more than 20 years. With professional production technology, it
can produce high-quality and high-performance optical fiber
jumpers. |
|
|
|
|
|
Manufacturing Capacity:
JFOPT has 5 production lines, enabling efficient production of
large quantities of fiber patch cords to meet customer demands. |
|
|
|
Quality Control:
JFOPT implements strict quality control, including quality
inspections and monitoring at every stage from raw material
procurement to production processes. Insertion loss testing and
end-face inspection are conducted to ensure product quality. |
|
|
|
Setting Standards:
JFOPT can formulate and strictly implement the production standards
of optical fiber jumpers according to user needs to ensure product
consistency and performance stability. |
|
|
|
Technological Innovation:
JFOPT focuses on technological innovation and has a professional
R&D team to continuously develop fiber optic jumpers with more
advanced functions and higher performance. |
|
|
|
Service and technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendation,
after-sales maintenance, etc., to meet customer needs and ensure
customer satisfaction. |
|
|
|
