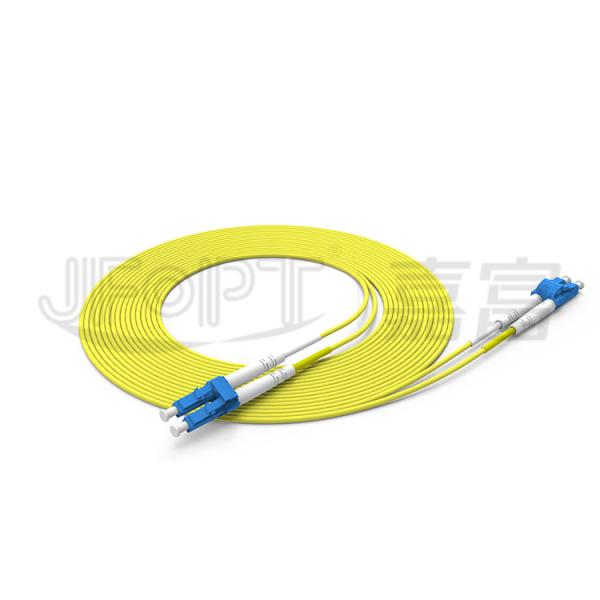

Duplex Fiber Optic Patch Cord LC - LC 2.0/3.0mm Single - Mode OS2
Zipcord Fiber Cable Yellow
JFOPT's duplex jumpers are widely used in data center distribution.
Compared to SC connectors, LC connectors offer higher density,
allowing for a doubling of the capacity of patch panels. Our
standard duplex jumpers are available in 1.6/1.8/2.0/3.0 mm cable
outer diameter options, and the SM fiber can use various models
such as G652D/G657A1/G657A2/G655. JFOPT maintains sufficient
inventory and, with our in-house fiber cable production lines, we
can quickly deliver customized orders. We have a comprehensive
production and quality control process, with 100% inspection of the
end face, loss data, appearance, and packaging, to ensure the
quality of products delivered to end customers.
♦ Features
① Duplex connection | ②Using high-quality, low-loss optical fiber from top brands like
YOFC/Corning |
|
|
|
|
|
|
③Utilizing high-quality, low-loss Three-circle ceramic ferrules | ④ 100% factory termination and testing to ensure transmission
performance |
|
|
|
|
|
|
⑤Customizable cable and connector housing colors, identification
rings, heat shrink tubing, and other special requirements | - |
| - |
|
|
|
|
♦ Applications
1.Fiber optic access networks
2.Fiber optic data transmission
3.Fiber optic communication systems, cable TV networks,
telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Connector Parameters
Connector Type | Insertion Loss | Return Loss |
SC/LC/FC/ST
Connector | SM | ≤0.3dB | APC≥60dB
UPC≥50dB |
MM | ≤0.3dB | UPC≥25dB |
♦ 3D Geometric Parameters (Optional)
Items | UPC | APC |
SC/FC/ST | LC | SC/FC | LC |
SM | MM | SM | MM | SM | SM |
Radius of curvature (mm) | 10-25 | 7-25 | 5-12 |
Apex offset (μm) | ≤50 | ≤30 |
Fiber Depressed (nm) | ±100 |
Angle deviation (°) | 0 | 8±0.3 |
Bond angle deviation (°) | 0 | ±0.5 |
Fiber diameter (μm) | 123-135 |
♦ Connector Housing Color Options
LC connector |
Single mode | Blue | Green |
|
|
|
Multimode | Beige | Aqua |
|
|
|
Heather Violet | Lime Green |
|
|
|
♦ Optical Cable Parameters
Item | Parameter |
Fiber type | Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
Fiber count | 2 |
Reinforcement element | Aramid yarn |
Outer sheath material | Optional LSZH/PVC/TPU |
Outer sheath diameter | 3.0mm |
Outer sheath color | Customizable |
Max. Tensile Strength (long term) | 160N |
Max. Tensile Strength (short term) | 300N |
Max. crush resistance (long term) | 200N/cm |
Max. crush resistance (short term) | 1000N/cm |
Minimum bending radius (dynamic) | 50mm |
Minimum bending radius (static) | 30mm |
Operating temperature | -20~60℃ |
Storage temperature | -20~60℃ |
flame retardance | Optional OFN/OFNR/OFNP |

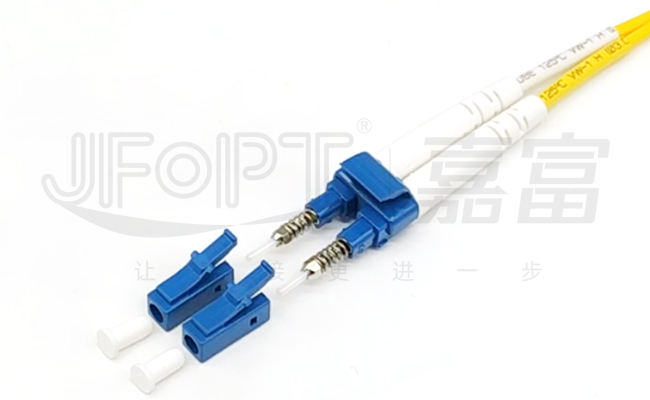

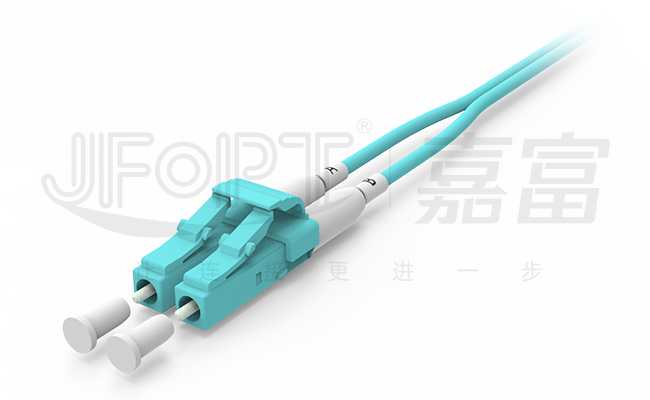

♦ Connector Options
Duplex |
Cable diameter | Boot type | Picture | Drawings |
2.0mm
Duplex | Standard boot |
|
|
|
|
|
|
|
|
|
2.0mm
Duplex | Short boot 1 |
|
|
|
|
|
|
|
|
|
2.0mm
Duplex | Short boot 2 |
|
|
|
|
|
|
|
|
|
3.0mm
Duplex | Standard boot |
|
|
|
|
|
|
|
|
|
3.0mm
Duplex | Short boot 1 |
|
|
|
|
|
|
|
|
|
3.0mm
Duplex | Standard UNIBOOT |
|
|
|
|
|
|
|
|
|
2.0/3.0mm
Duplex | 45° boot |
|
|
|
|
|
|
|
|
|
2.0/3.0mm
Duplex | 90° boot |
|
|
|
|
|
|
|
|
|
Duplex
Narrow pitch clip | With any boot
(except UNIBOOT) |
|
|
|
|
|
|
|
|
|
♦ Duplex Polarity Selection
TYPE A-B(Straight) |
|
TYPE A-A(Crossing) |
|
♦ Product Packaging
|
|
Thickened ziplock bag | Thickened carton |
♦ Factory Strength
Specialization:
With over 20 years of focus on fiber optic jumpers, JFOPT has
professional production technology to manufacture high-quality and
high-performance fiber optic jumpers. |
|
|
|
|
|
Manufacturing Capacity:
JFOPT has 5 production lines and equipment to efficiently produce a
large quantity of fiber optic jumpers to meet customer demands. |
|
|
|
Quality Control:
JFOPT follows strict quality control measures throughout the
procurement of raw materials and production process. Insertion loss
testing and end-face inspection are performed to ensure product
quality. |
|
|
|
Setting Standards:
JFOPT can customize and strictly adhere to production standards for
fiber optic jumpers according to user requirements, ensuring
consistency and performance stability. |
|
|
|
Technological Innovation:
JFOPT emphasizes technological innovation and has a professional
R&D team dedicated to developing advanced and high-performance
fiber optic jumpers. |
|
|
|
Service and technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendations, and
post-sales repairs, to meet customer needs and ensure customer
satisfaction. |
|
|
|
♦ Frequent Q&A
1.What issues should be considered when customizing standard fiber
jumpers?
Customization requirements for standard fiber jumpers include
length, cable material, fiber type and count, duplexing sequence,
color, labeling, and other specifications.
2.How do we ensure the stability of our standard fiber jumpers?
JFOPT's standard fiber jumpers undergo 100% insertion loss testing
and end-face inspection, ensuring quality stability through
multiple checks.
3.What other advantages products do we offer besides LC jumpers?
In addition to LC jumpers, we also manufacture FC/ST/SC and other
standard model jumpers, various connector adapter jumpers, MPO
adapters for standard connectors (such as LC), outdoor waterproof
cables and jumpers, as well as various non-standard and special
fiber connectors.
4.What is our delivery lead time?
For standard products, our delivery lead time can be controlled
within 2 working days, ensuring prompt shipment.
