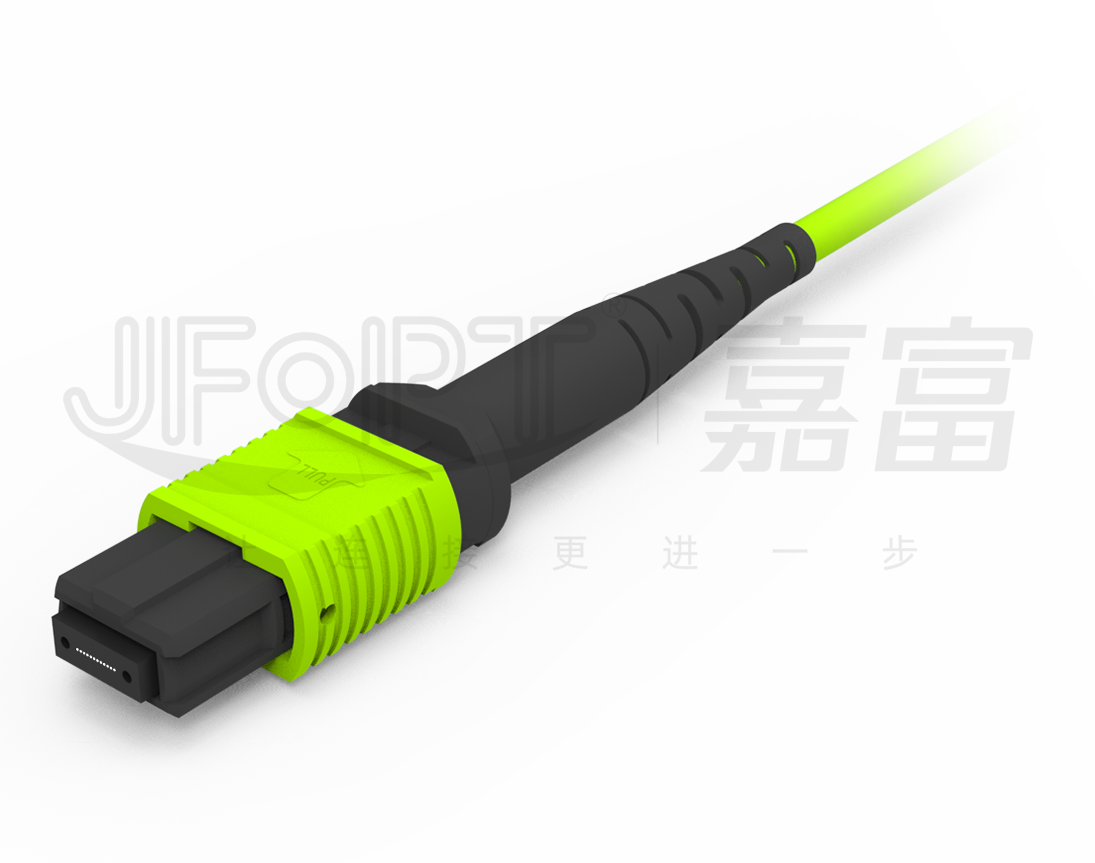

96 Cores 12 Fibers *8 Units OM5 50/125 Multimode High-Bandwidth
Mini Round Cable Trunk Cable
The 96-core MPO trunk cable uses a 96-core mini cable with 12
fibers per unit (customizable according to requirements), offering
higher integration and significant space savings in cable
management. The cable is made of bend-insensitive multimode OM5
fiber, providing greater bandwidth and longer transmission
distances. It features an aramid yarn as a reinforcement element to
enhance tensile strength. The cable can be made with an OFNP
flame-retardant rating, ensuring fire resistance. It is packaged in
an anti-static bag to prevent dust and moisture and protect against
electrostatic damage.
♦ Features
① OM5 fiber provides higher bandwidth | ②The 96-core trunk cable is easy to manage and organize |
|
|
|
|
|
|
③ Long transmission distance, capable of reaching 150 meters for
400G | ④ MPO durability of up to 500 times |
|
|
|
|
|
|
⑤Compliant with IEC-61754-7 and TIA-604-5 (FOCIS-5) standards | - |
| - |
|
|
|
|
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom
networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
Connector Type | Insertion Loss | Return Loss |
Typical | Maximum |
MPO Connector | SM Standard | 0.2dB | 0.75dB | APC≥60dB
PC≥50dB |
SM Low Loss | 0.1dB | 0.35dB |
MM Standard | 0.2dB | 0.6dB | PC≥25dB |
MM Low Loss | 0.1dB | 0.35dB |
Male / Female | Male : with Pin Female : without Pin |
♦ 3D Geometric Parameters
Items | Max | Min |
Radius of curvature (mm) | X | 2000 | -10000 |
Y | - | 5 |
Angle (°) | X | 0.15 | -0.15 |
Y(APC) | 8.2 | 7.8 |
Y(PC) | 0.2 | -0.2 |
Radius of curvature of optical core (mm) | - | 1 |
Fiber height (nm) | 3500 | 1000 |
Height difference of adjacent fiber (nm) | 500 | N/A |
Maximum negative coplanar (nm) | 300 | N/A |
♦ Cable Parameters
Item | Parameter |
Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
Fiber Count | 24 | 48 | 72 | 96 | 144 | 288 |
Unit Count | 12 cores / unit | 12 cores / unit | 12 cores / unit | 12 cores / unit | 12 cores / unit | 12 cores / unit | 24 cores / unit |
Central Strength Member | / | / | FRP |
Sub-Cable Unit Outer Diameter | 3.0mm |
Sub-Cable Unit Jacket Material | PVC/LSZH |
Sub-Cable Unit Jacket Color | Yellow / Orange / Green / Heather Violet / Customization |
Sub-Cable Unit Strength Member | Aramid yarn |
Outer Jacket Diameter | 9.5mm | 9.5mm | 11.5mm | 13.5mm | 17.0mm |
Outer Jacket Material | PVC/LSZH |
Outer Jacket Color | Yellow / Orange / Green / Heather Violet / Customization |
Tensile Strength (Long-Term) | 300N | 200N | 400N | 800N | 1600N |
Tensile Strength (Short-Term) | 600N | 400N | 1000N | 1500N | 3000N |
Crush Resistance (Long-Term) | 300N/10cm |
Crush Resistance (Short-Term) | 1000N/10cm |
Minimum Bending Radius (Dynamic) | 20D |
Minimum Bending Radius (Static) | 10D |
Operating Temperature | -20~60℃ |
Storage Temperature | -20~60℃ |
Fire Rating | OFN / OFNR / OFNP |
♦ Connector Boot Selection
MPO boot type |
Type | Specification | Applicable cable OD | Picture | Drawings |
Round boot | 3.0 boot L=33mm | 3.0/3.2 |
|
|
3.0 boot L=17mm | 3.0/3.2 |
|
|
Flat Boot | 3.0 boot L=25mm | 3.0/3.2 |
|
|
Push-pull tab | Universal for all boots | Universal |
|
|
♦ Connector Color Options
MPO connector |
Single mode | Green | Yellow |
Reference color number PANTONE 2270C | Reference color number PANTONE 100C |
|
|
Multimode | Beige | Aqua |
Reference color number PANTONE 7534C | Reference color number PANTONE 2226C |
|
|
Violet | Lime Green |
Reference color number PANTONE 7641C | Reference color number PANTONE 375C |
|
|
♦ Polarity Selection
12F Patch Cord |
|
♦ Product Packaging
|
|
Thickened anti-static bag | Thickened carton |
♦ Factory Strength
Specialization:
JFOPT has been focusing on the production of MPO jumpers for over
10 years, with professional expertise and a complete set of
top-brand equipment (SUMIX/JRG/OPTOTEST), enabling the production
of high-quality, high-performance MPO jumpers. |
|
|
|
|
|
Manufacturing capacity:
JFOPT has 5 MPO production lines and equipment to produce a large
quantity of MPO jumpers quickly and efficiently to meet customer
demands. |
|
|
|
Quality Control:
JFOPT implements strict quality control throughout the raw
materials and the production process, with professional quality

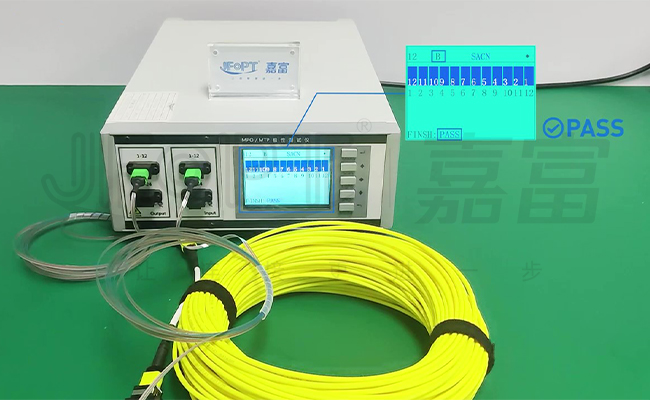

inspection and monitoring at every stage, including 100% 3D
interference testing, insertion loss testing, and end-face
inspection to ensure product quality. |
|
|
|
Service and Technical Support:
JFOPT can develop and strictly adhere to MPO jumper production
standards based on customer requirements to ensure product
consistency and performance stability. |
|
|
|
Technological Innovation:
JFOPT emphasizes technological innovation and has a professional
R&D team dedicated to developing more advanced and
higher-performing MPO jumpers. |
|
|
|
Service and Technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendations, and
post-sales maintenance, to meet customer needs and ensure customer
satisfaction. |
|
|
|
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and core count / Male
or female connectors / Insertion loss standards / Color
requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100%
insertion loss testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors,
ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO
attenuators, MPO male-to-female adapters, MT jumpers, and other
MPO-related products.
