MPO Switchable Polarity Trunk Cable With A/B Polarity Conversion
And Key Reversal

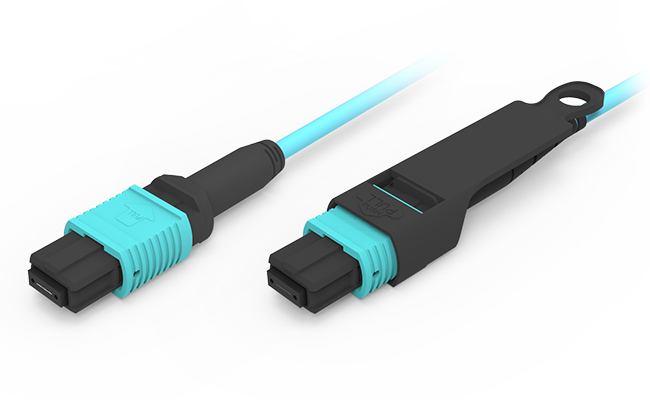

The switchable polarity MPO connector allows polarity conversion
without tools. With its unique dual-sided Key design, it enables
A/B polarity conversion for 12-fiber and below connectors. JFOPT's
self-developed switchable polarity MPO connector complies with the
MPO connector requirements of the IEC standard and offers
advantages such as tool-free operation and lower cost compared to
USCONEC's MTP PRO switchable polarity connector.
♦ Features
① Interchangeable polarity MPO connector | ② Dual-sided Key for polarity reversal |
|
|
|
|
|
|
③ Tool-free operation for convenient use | ④ A/B polarity interchange for 12-fiber and below configurations |
|
|
|
|
|
|
⑤ Optional features such as short boot/push-pull tab, etc | - |
| - |
|
|
|
|
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom
networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
Connector Type | Insertion Loss | Return Loss |
Typical | Maximum |
MPO Connector | SM Standard | 0.2dB | 0.75dB | APC≥60dB
PC≥50dB |
SM Low Loss | 0.1dB | 0.35dB |
MM Standard | 0.2dB | 0.6dB | PC≥25dB |
MM Low Loss | 0.1dB | 0.35dB |
Male/Female | Male: with Pin, Female: without Pin |
♦ 3D Geometric Parameters
Items | Max | Min |
Radius of curvature (mm) | X | 2000 | -10000 |
Y | - | 5 |
Angle (°) | X | 0.15 | -0.15 |
Y(APC) | 8.2 | 7.8 |
Y(PC) | 0.2 | -0.2 |
Radius of curvature of optical core (mm) | - | 1 |
Fiber height (nm) | 3500 | 1000 |
Height difference of adjacent fiber (nm) | 500 | N/A |
Maximum negative coplanar (nm) | 300 | N/A |
♦ Optical Cable Parameters
Item | Parameter |
Fiber Type | Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
Fiber Count | Optional 8/12/16/24 |
Strength Member | Aramid yarn |
Outer Jacket Material | Optional LSZH/PVC/TPU |
Outer Jacket Diameter | 3.0mm |
Outer Jacket Color | Yellow / Orange / Green / Heather Violet / Customization |
Tensile Strength (Long-term) | 80N |
Tensile Strength (Short-term) | 150N |
Crush Strength (Long-term) | 100N/cm |
Crush Strength (Short-term) | 500N/cm |
Minimum Bending Radius (Dynamic) | 20D |
Minimum Bending Radius (Static) | 10D |
Operating Temperature | -20~60℃ |
Storage Temperature | -20~60℃ |
Fire Rating | Optional OFN/OFNR/OFNP |
Item | Parameter |
Fiber Type | Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
Fiber Count | 2~12 |
Strength Member | Aramid yarn |
Outer Jacket Material | Optional LSZH/PVC/TPU |
Outer Jacket Diameter | 2.5x5.0mm |
Outer Jacket Color | Yellow / Orange / Green / Heather Violet / Customization |
Tensile Strength (Long-term) | 100N |
Tensile Strength (Short-term) | 200N |
Crush Strength (Long-term) | 200N/cm |
Crush Strength (Short-term) | 500N/cm |
Minimum Bending Radius (Dynamic) | 50mm |
Minimum Bending Radius (Static) | 30mm |
Operating Temperature | -20~60℃ |
Storage Temperature | -20~60℃ |
Fire Rating | Optional OFN/OFNR/OFNP |
♦ Connector Housing Color Options
MPO connector |
SM | Green | Yellow |
Reference color number PANTONE 2270C | Reference color number PANTONE 100C |
|
|
MM | Beige | Aqua |
Reference color number PANTONE 7534C | Reference color number PANTONE 2226C |
|
|
Violet | - |
Reference color number PANTONE 7641C |
|
♦ Boot Options
MPO boot |
Type | Specification | Applicable cable | Picture | Drawings |
Round boot | 3.0 boot length 33mm | 3.0/3.2 |
|
|
|
|
3.0 boot length 17mm | 3.0/3.2 |
|
|
|
|
4.0 boot length 33mm | 3.8/4.0 |
|
|
|
|
Square boot | 3.0 boot length 25mm | 3.0/3.2 |
|
|
|
|
4.0 boot length 17mm | 3.8/4.0 |
|
|
|
|
Ribbon Cable boot | 2.5*5.0 boot length 22mm | 2.5*5.0 |
|
|
|
|
Bare Ribbon fiber boot | Bare Ribbon fiber boot length 19mm | Bare Ribbon Fiber |
|
|
|
|
♦ Interchangeable polarity operation
♦ Polarity Selection
12F Patch Cord |
|
♦ Product Packaging
|
|
Thickened anti-static bag | Thickened carton |
♦ Factory Strength
Specialization:
JFOPT has focused on the production of MPO jumpers for more than 10
years. With professional technology and a full set of first-class
brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality,
high-performance MPO jumpers. |
|
|
|
|
|
Manufacturing capacity:
JFOPT has 5 MPO production lines, allowing the rapid and efficient
production of a large quantity of MPO trunk cables to meet customer
demands. |
|
|
|
Quality Control:
JFOPT implements strict quality control measures at every stage,
from raw material procurement to production processes, with
professional quality inspection and monitoring. We conduct 100% 3D
interferometer testing/IL&RLtesting/end-face inspection to
ensure product quality. |
|
|
|
Setting standards:
JFOPT can formulate and strictly implement MPO jumper production
standards according to user needs to ensure product consistency and
performance stability. |
|
|
|
Technological innovation:
JFOPT focuses on technological innovation and has a professional
R&D team to continuously develop MPO jumpers with more advanced
functions and higher performance. |
|
|
|
Service and Technical Support:
JFOPT provides comprehensive pre-sales and after-sales services,
including technical consultation, product recommendation,
after-sales maintenance, etc., to meet customer needs and ensure
customer satisfaction. |
|
|
|
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / Male
or female connectors / Insertion loss standards / Color
requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100%
IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors,
ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO
attenuators, MPO male to female adapters, MT jumpers, and other
MPO-related products.
