FTTH Indoor Drop Cable/ Butterfly-shaped Cable/ Single-core/
Dual-core /Multi-core Metal /FRP Parallel Strength Member
JFOPT's Drop Cable is structured with a central unit of bare
fibers, with two parallel non-metallic strength members (FRP) or
steel wire strength members placed on both sides, and finally
extruded with an LSZH (Low Smoke Zero Halogen) sheath. Drop Cable
is an innovative fiber optic cabling product that features a unique
groove design in a butterfly shape, making it easy to strip,
splice, and simplify its installation and maintenance. The special
design of the butterfly structure effectively isolates
electromagnetic interference between the cables, reducing the
possibility of signal interference from external sources. Drop
Cable is manufactured by high-quality materials, providing features
such as compression resistance, tensile strength, and wear
resistance, ensuring excellent performance over long-term use and
reducing the frequency of maintenance and replacement. JFOPT can
provide Drop Cables in various specifications and models to meet
personalized choices for different cabling requirements.
♦ Product Features
① Made with optical fibers from YOFC/Corning and other leading
brands, ensuring excellent optical performance and data
transmission quality | ②Unique groove design allows for easy stripping, splicing, and
simplified installation and maintenance |
|
|
③Light and easy to lay, with low construction costs, fast
installation speed, and flexibility | ④Two parallel strength members provide excellent tensile and
compression performance to protect the fibers |
|
|
⑤Suitable for various complex cabling scenarios | ⑥100% factory tested to guarantee transmission performance |
|
|
♦ Applications
1.Fiber-to-the-Home (FTTH)
2.Indoor horizontal and vertical cabling
3.Local area networks (LAN)

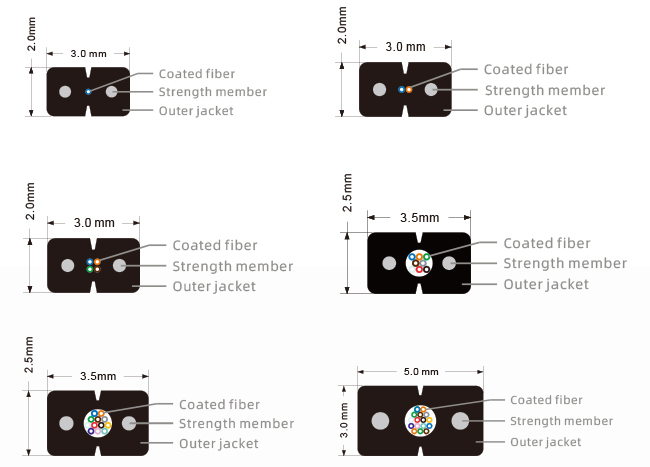

♦ Profile View
♦ Cable Parameters
Items | Specifications |
Fiber Count | 1/2/4 | 8 | 12 | 16 |
Colored Coating Fiber | Dimension | 0.25±0.015mm |
Color | Customer-Specified | All chromatography + Blue/Orange/Green/Brown |
|
Strength Member | FRP OR Steel Wire | FRP |
Jacket | Dimension | (2.0±0.1)× (3.0±0.1)mm | (2.2±0.2)× (3.3±0.2)mm | (2.5±0.2)× (3.5±0.2)mm | (5.0±0.2)× (3.0±0.2)mm |
Material | LSZH |
Color | Black / White |
♦ Mechanical and Environmental Characteristics
Items | Unit | Specifications |
Fiber Count |
| 1/2/4 | 8 | 12 | 16 |
Strength Member | FRP | Steel Wire | FRP |
Tension(Long Term) | N | 40 | 100 | 100 |
Tension(Short Term) | N | 80 | 200 | 200 |
Crush(Long Term) | N/10cm | 500 | 1000 | 500 |
Crush(Short Term) | N/10cm | 1000 | 2200 | 1000 |
Min. Bend Radius(Dynamic) | mm | 60 | 80 |
Min. Bend Radius(Static) | mm | 30 | 40 |
Operating Temperature | ℃ | -20~+60 |
Storage Temperature | ℃ | -20~+60 |
♦ Fiber Parameters
Single mode |
Items | Unit | G.652D | G.657A1 | G.657A2 |
Mode Field Diameter | 1310nm | μm | 9.2±0.4 | 9.0±0.4 | 8.8±0.4 |
1550nm | μm | 10.4±0.5 | 10.1±0.5 | 9.8±0.5 |
Cladding Diameter | μm | 125±0.7 | 125±0.7 | 125±0.7 |
Cladding Non-Circularity | % | ≤0.7 | ≤0.7 | ≤0.7 |
Core-Cladding Concentricity Error | μm | ≤0.5 | ≤0.5 | ≤0.5 |
Coating Diameter | μm | 245±7 | 245±5 | 245±5 |
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 |
Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 |
Attenuation
(max.) | 1310nm | dB/km | ≤0.4 | ≤0.35 | ≤0.35 |
1550nm | dB/km | ≤0.3 | ≤0.21 | ≤0.21 |
♦ Product Packaging
|
|
Packed on the drum | Drum sealed |
♦ Factory Strength
Expertise:
JFOPT has the professional R&D team, production technology, and
equipment, capable of producing various types of Drop Cables like
indoor, outdoor, single-mode fiber, multi-mode fiber. |
|
|
|
|
|
Manufacturing Capacity:
JFOPT has three dedicated production lines for Drop Cables and
indoor optical cables, enabling fast and efficient production to
meet customer demands. |
|
|
|
Quality Control:
JFOPT implements strict quality control measures, ensuring that the
selected fiber, sheath materials, and strength member materials
meet relevant international, national, or industry standards. Each
production process undergoes professional quality inspections to
ensure product quality. |
|
|
|
Standard Setting:
With a professional and experienced R&D team, JFOPT offers a
full range of product selection and customization services based on
the company's comprehensive solutions. Drop Cable can be customized
to meet different requirements in terms of appearance, size,
structure, color of each part, jacket printing, packaging, etc. |
|
|
|
Technological Innovation:
JFOPT emphasizes technological innovation and possesses rich
expertise and experience in fiber optic transmission technology.
The company provides innovative products and solutions to meet the
growing communication needs. |
|
|
|
Service and Technical Support:
JFOPT offers comprehensive pre-sales and after-sales services,
including technical consultations, product recommendations, and
post-sales maintenance, to meet customer requirements and ensure
customer satisfaction. |
|
|
|
♦ Frequent Q&A
1.What should be considered when purchasing optical cables?
When purchasing optical cables, you should consider the cable
model, jacket color, outer diameter, jacket material, fire rating,
mechanical performance, and so on.
2.Can we customize the jacket color and printing?
Yes, we can customize the color and printing based on the samples
you provide.
3.What are the advantages of our Drop Cable?
As we are the original factory, our drop Cable ensures 100% new
materials and premium fiber at the same price.
4.What types of optical cables can we produce?
We can produce various types of indoor/outdoor optical cables, such
as single/dual-core round cables, mini cables, ribbon cables, ADSS,
GYTA, GYTS, GYXTW, and more.
5.What is the minimum order quantity for our drop Cable?
The minimum order quantity for drop Cable is 1 kilometer. For
special cables, please consult our sales team.
6.What is our delivery lead time?
For regular optical cables, we can typically deliver within 3
working days.
