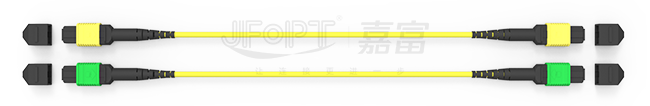

Product Description:

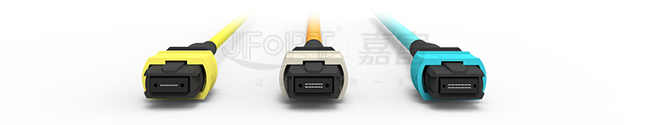

The MPO (Multi-fiberPushOn) connector is part of the MT series of
connectors. These connectors have ferrules with two guide holes and
guide pins, also known as pins, for precise connection. By JFOPT‘s
processing MPO connectors and optical fiber cables, various forms
of MPO jumpers can be produced. These jumpers can be designed with
8 to 32 cores, with the 12-core MPO connector being the most
commonly used.
The compact design of the MPO connector allows for a higher number
of cores and a smaller size for the MPO jumper. This makes it ideal
for use in environments where high-density integrated optical fiber
lines are necessary, such as in the wiring process, FTTX, and with
40/100GSFP, SFP+, and other transceiver modules. MPO patch cords
are also commonly used for both internal and external connection
applications within equipment.
Features:
1. Minimize Failures and Reduce Wiring Space
In order to improve network efficiency and reduce potential
failures, we recommend using 4, 8, 12, and 24-core MPO connectors.
Not only do these connectors provide a stable and reliable
connection, but they also help minimize the amount of space needed
for wiring.
2. Smoothly Upgrade to Higher Speeds
Our connectors are designed to support smooth and seamless upgrades
from 10G to 40G and 100G network transmission. Additionally, they
also support a delay index suitable for 100G transmission, ensuring
a smooth transition to faster speeds.
3. Flexible Fiber Options
We understand that different users have different configuration
requirements, which is why our connectors are compatible with
various fiber specifications. This includes multi-mode OM1 and OM3,
as well as single-mode G652D and G657A2, allowing users to
customize their setup to fit their specific needs.
4. Convenient and Fast Installation
We have also developed a new optical cable with a special circular
structure and smaller outer diameter. This design achieves a
smaller bending radius for the trunk optical cable, making it
easier and faster to store and lay. Say goodbye to time-consuming
and difficult installation processes.
Technical Parameters:
Product Name | MPO Trunk Cable |
|---|
Operating Wavelength | 850nm, 1300nm |
|---|
Operating Temperature | -40℃~85℃ |
|---|
Cable Jacket Material | PVC / LSZH / TPU |
|---|
Connector Polishing | PC/UPC/APC |
|---|
Fiber Mode | Multi-mode OM1 |
|---|
Jacket Material | PVC/LSZH/OFNP |
|---|
Connector Model | MPO |
|---|
Type | Multi-core Fiber Optic Patch Cord |
|---|
MPO Gender | Male/Female |
|---|
Place of Origin | Guangdong, China |
|---|
Product Keywords | 12 Core MPO Connecter Fiber Optic Cable |
|---|
Ferrule type | Insertion loss | Return loss |
Typical | Maximum |
SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB (APC 8°) |
SM low loss | 0.10dB | ≤0.35dB |
MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB |
MM low loss | 0.10dB | ≤0.35dB |
MT Ferrule Options |
Fiber mode | Performance | Fiber count |
Single mode | Standard loss | 12 (1x12) |
24 (2x12) |
Low loss | 12 (1x12) |
Multimode | Standard loss | 12 (1x12) |
16 (1x16) |
24 (2x12) |
32 (2x16) |
Low loss | 12 (1x12) |
24 (2x12) |
Cable Parameter |
Items | Specifications |

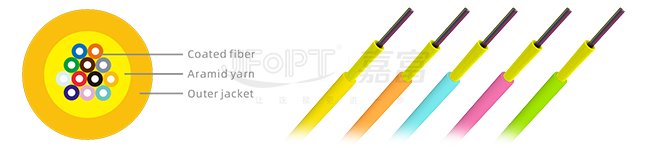

Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 |
Fiber | Diameter | 250±15μm |
Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua |
Strength Member | Aramid Yarn |
Outer Jacket | Diameter | 3.0±0.2mm |
Material | PVC /LSZH |
Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua |
Mechanical performance |
Items | Specifications |
Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 |
Tensile Strength (Long Term) / N | 80 |
Tensile Strength (Short Term)/ N | 150 |
Crush Resistance (Long Term) / N/10cm | 150 | 100 |
Crush Resistance (Long Term) / N/10cm | 500 |
Min. Bend Radius (Dynamic) / mm | 20D |
Min. Bend Radius (Static)/ mm | 10D |
Operating Temperature/℃ | -20～+60 |
Storage Temperature/℃ | -20～+60 |
Fiber Parameter |
SM: |
Items | Unit | G.652D | G.657A1 | G.657A2 |
Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 |
1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 |
Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 |
Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 |
Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 |
Coating Diameter | μm | 245±7 | 245±5 | 245±5 |
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 |
Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 |
Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 |
1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 |
MM: |
Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 |
Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 |
Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 |
Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 |
Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 |
Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 |
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 |
1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 |
Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Applications:
1. Data cabling center
2. Optical fiber communication room
3. Optical fiber testing equipment
4. Optical fiber transmission equipment
Customization:
Customized MPO Trunk Cable - JFOPT
Brand Name: JFOPT
Model Number: MPO Multimode OM1 Fiber Optic Patch Cord
Place of Origin: CHINA
Certification: CE, ISO9001
Minimum Order Quantity: 1
Price: NA
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 1000 pcs/day
Jacket Material: PVC/LSZH/OFNP
Operating Wavelength: 850nm, 1300nm
Optical Cable: 3.0mm/3.5mm Single-Tube Mini Cable
Type: Multi-core Fiber Optic Patch Cord
Connector Model: MPO
