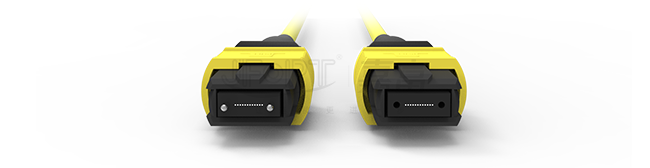

Product Description:
MPO Trunk Cable 12f low loss are essential for establishing
permanent connections with MPO modules. These cords offer the
flexibility of changing the connection form on fiber optic panels.
With the use of small-diameter optical cables and 12-core MPO
connectors, MPO pre-terminated optical cables can be created for
plug-and-play functionality. This makes deployment quick and easy,
as they can be seamlessly connected to plug-and-play modules or MPO
adapter panels.
Features:
1. Grind the Class A end surface.
Imported grinding equipment and grinding materials are used. The
end surface of the ferrule is in a flat grinding state. Advanced
manufacturing technology ensures more stable transmission.
2. LSZH low-smoke.
halogen-free, flame-retardant and environmentally friendly optical
cable sheath eliminates external signal interference and provides
transparent, stable, agile and natural transmission
3. Square humanized design.
Square mouth and opposite mouth, strong versatility, suitable for
most devices with fiber optic interfaces on the market today
4. Compact design.
The connector design is compact. One MPO/MTP connector can
accommodate 12 cores. It is easy to plug and unplug for easy
installation and removal.

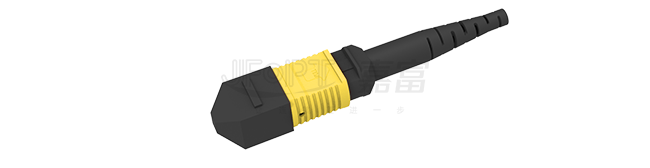

5. Dust cap protection.
The connector is matched with a dust cap to protect the connector
end face from damage, making the wire have a longer service life
and less attenuation.
Technical Parameters:
Product Name | 12 Cores MPO(f) low loss Patch Cable |
|---|
Matching Adapter | MPO Adapter |
Cable Color | Blue/ Orange/ Green/ Brown/ Gray/ White/ Red/ Black/ Yellow/
Purple/ Pink/ Aqua |
Jacket Material | LSZH/PVC/OFNP |
Loss | Low Loss |
Diameter | 2.0/3.0±0.2mm |
Fiber Brand | Corning, YOFC |
Strength Member | Aramid Yarn |
Brand Name | JFOPT |
Speed | 10 Gigabits |
Return Loss | MM≥20dB；SM≥60dB |
Optical Fiber | G.652D/ G.657A1/ G.657A2/ OM1/ OM2/ OM3/ OM4 |
Ferrule type | Insertion loss | Return loss |
Typical | Maximum |
SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB (APC 8°) |
SM low loss | 0.10dB | ≤0.35dB |
MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB |
MM low loss | 0.10dB | ≤0.35dB |
| MT Ferrule Options |
| Fiber mode | Performance | Fiber count |
| Single mode | Standard loss | 12 (1x12) |
| 24 (2x12) |
| Low loss | 12 (1x12) |
| Multimode | Standard loss | 12 (1x12) |
| 16 (1x16) |
| 24 (2x12) |
| 32 (2x16) |
| Low loss | 12 (1x12) |
| 24 (2x12) |
| Mechanical performance |
| Items | Specifications |
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 |
| Tensile Strength (Long Term) / N | 80 |
| Tensile Strength (Short Term)/ N | 150 |
| Crush Resistance (Long Term) / N/10cm | 150 | 100 |
| Crush Resistance (Long Term) / N/10cm | 500 |
| Min. Bend Radius (Dynamic) / mm | 20D |
| Min. Bend Radius (Static)/ mm | 10D |
| Operating Temperature/℃ | -20～+60 |
| Storage Temperature/℃ | -20～+60 |
Fiber Parameter |
SM: |
Items | Unit | G.652D | G.657A1 | G.657A2 |
Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 |
1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 |
Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 |
Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 |
Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 |
Coating Diameter | μm | 245±7 | 245±5 | 245±5 |
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 |
Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 |
Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 |
1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 |
MM: |
Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 |
Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 |
Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 |
Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 |
Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 |
Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 |
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 |
1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 |
Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Applications:
Another critical technology in high density data centers is "QSFP"
and "CFP" optical transceivers. These are small devices that
convert electrical signals into optical signals, allowing for the
transmission of data over fiber optic cables. They are used to
connect networking equipment, such as switches and routers, to the
fiber optic network in a data center. The use of QSFP and CFP
optical transceivers helps to increase the data transfer capacity
and efficiency of high density data centers.
Customization:
Customized Service for JFOPT MPO Trunk Cable
At JFOPT, we understand the importance of customized solutions for
your data center needs. That's why we offer a wide range of
customized services for our MPO Trunk Cable, designed to meet your
specific requirements.
Our MPO Trunk Cable is a high-performance fiber optic cable that is
ideal for data centers, providing a fast and reliable connection.
With its MPO-MPO, MPO-LC, and MPO-SC connectors, it allows for easy
and flexible installation.
When it comes to customization, we offer a variety of options to
choose from. You can select the number of cores (8, 12, or 24), the
type of fiber (singlemode or multimode), and the fiber brand
(Corning or YOFC). This allows you to tailor the cable to your
specific needs and applications.
In addition, our MPO Trunk Cable is available in different jacket
materials, including LSZH, PVC, and OFNP, giving you the
flexibility to choose the most suitable option for your
environment.
We also offer a wide range of cable colors, such as blue, orange,
green, brown, gray, white, red, black, yellow, purple, pink, and
aqua, allowing for easy identification and organization of your
network connections.
With a return loss of MM≥20dB and SM≥60dB, our MPO Trunk Cable
ensures high performance and reliability. Plus, with a speed of 10
Gigabits, it provides fast data transmission for efficient data
center operations.
At JFOPT, we strive to provide the best quality products and
services to our customers. Contact us today to learn more about our
customized solutions for MPO Trunk Cable.
Packing and Shipping:
MPO Trunk Cable Packaging and Shipping
Our MPO trunk cables are carefully packaged to ensure safe delivery
to our customers. Each cable is individually wrapped in plastic and
then placed in a sturdy cardboard box. The box is then sealed with
tape to prevent any damage during shipping.
For larger orders, the cables are packaged in a wooden crate for
added protection. The crate is securely fastened and labeled with
the necessary shipping information.
We offer various shipping options for our customers to choose from,
including express delivery for urgent orders. Our shipping
department works closely with reliable carriers to ensure timely
and efficient delivery of our products.
For international orders, we take extra precautions by using
reinforced packaging materials and filling out all necessary
customs forms to ensure a smooth shipping process.
At MPO Trunk Cable, we strive to provide our customers with the
best packaging and shipping services to ensure the safe arrival of
our products.
